High lift solar powered water pump varuna submersible pump list

  • 1 - 19 Sets
    $408.00
  • >=20 Sets
    $105.00
Horsepower:
0.5-350
Maximum Flow Rate:
0.2-2200
Maximum Head:
10-1000
Lead Time:
Quantity(Sets) 1 - 1 >1
Est. Time(days) 7 Negotiable
Customization:
Customized logo (Min. Order: 1 Sets)
Customized packaging (Min. Order: 1 Sets)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Shanghai, China (Mainland)
Brand Name:
Yaochuang
Model Number:
YC
Structure:
Screw Pump
Usage:
Water
Application:
solar pump for irrigation, irrigation/home
Power:
0.37KW-110KW
Fuel:
solar energy
Pressure:
High Pressure
Theory:
Mixed Flow Pump
Voltage:
220V/380V
Product name:
High lift solar powered water pump varuna submersible pump list
Warranty:
1-10years
Feature:
High Efficiency
Material:
Stainless Steel

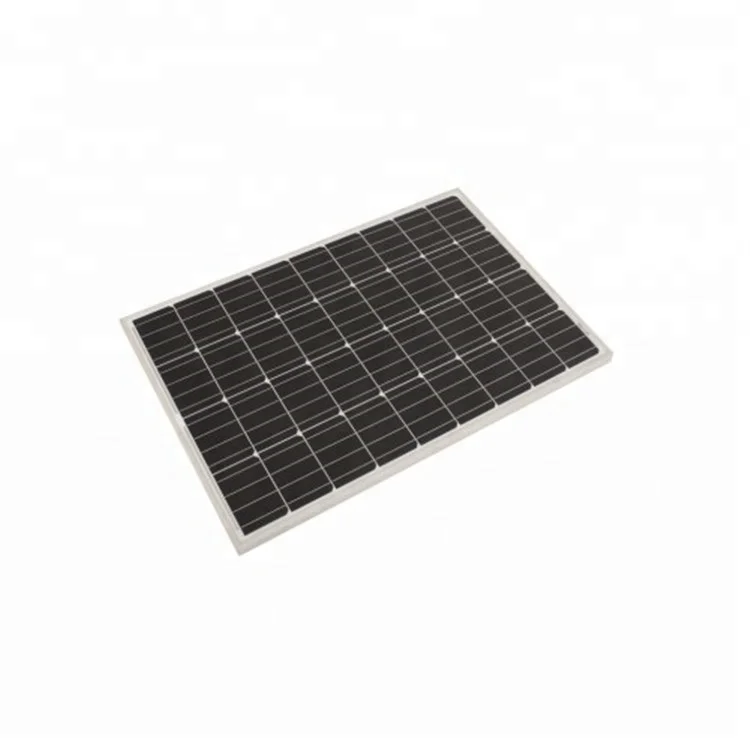

Solar panel:
polycriystalline
Model:
Multistage submersible pumps
Impeller:
Stainless Steel Material
Supply Ability
Supply Ability:
500 Set/Sets per Month High lift solar powered water pump varuna submersible pump list
Packaging & Delivery
Packaging Details
Standard package
Solar panel, solar pump inverter, solar water pump in carton/wooden box
Port
Shanghai
Lead Time :
Quantity(Sets) 1 - 1 >1
Est. Time(days) 7 To be negotiated
Video Description
Product Description

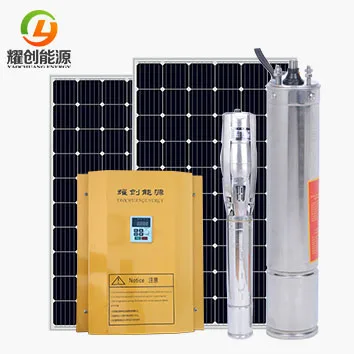

High lift solar powered water pump varuna submersible pump list

Easy to install and easy to operate while providing constant water pressure for a variety of applications. Some typical applications for these submersible pumps include well pump control and bore water pumping for domestic water supply. Made from high-grade stainless steel and other corrosion resistant materials.


About water pump motor

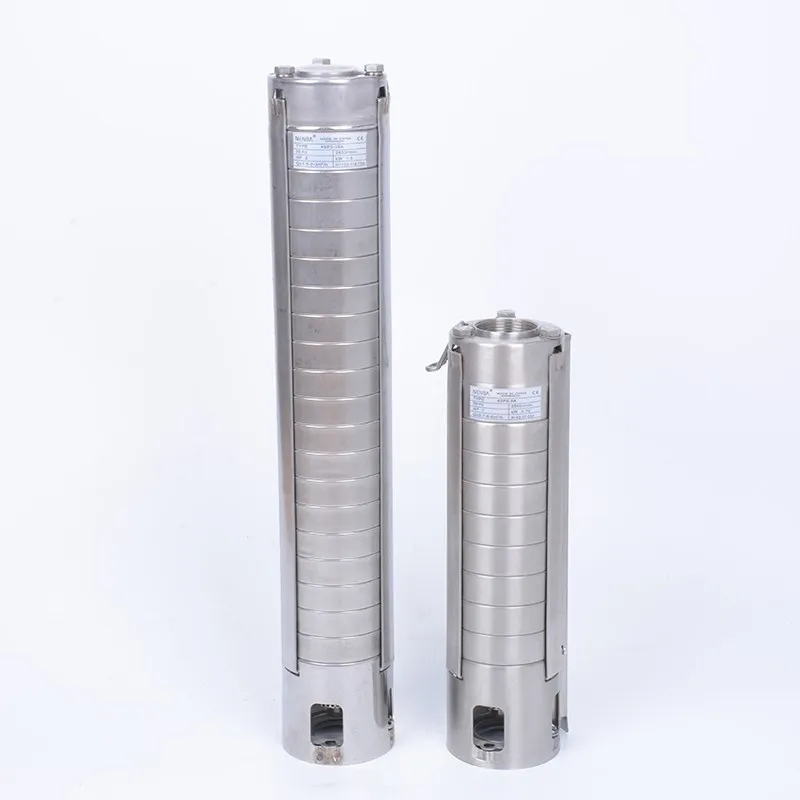

4 inch Motor Stainless steel(there is bronze flange orss flange)
Single phase: 0.37kW ~ 2.2kWThree phase: 0.37kW~7.5 kW


6 inch Motor Cast iron(Standard), Stainless steel(If required, need to specify )Three phase:4kW~37 kW.8 Motor Cast iron(Standard), Stainless steel(If required, need to specify )Three phase:5.5kW~110 kW


Single phase pump has a capacitor, manual reset over-current protector, power switch controller. It can protect pump motor by disconnecting electricity automatically when excessive current situation cause by impeller stuck, power abnormalities

Three phase pump has a controller box, over current protector, it can protect pump motor by cutting off electricity automatically when default phase, impeller stuck

 The curve tolerance complies with ISO9906 Ann-ex A.


All curves arc based on thc measured values of 50Hz: constant motor speed 2850r/min or 2900r/min, 60Hz: constant motor speed 3440r/min or 3500r/min.


All measurements are carried out with gas -free water of tempcraturc 20°.The curve is applicable to kinematical viscosity 1mm2/s. In case density of the liquid conveyed by the pump is higher than that of water, it is necessary to use corresponding motor of higher output power.

The coarse part of the curve means the recommended performance scope.

The performance curve includes loss caused by cheek valve etc.

Certifications

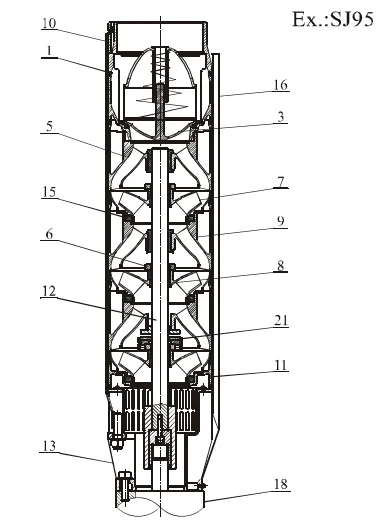

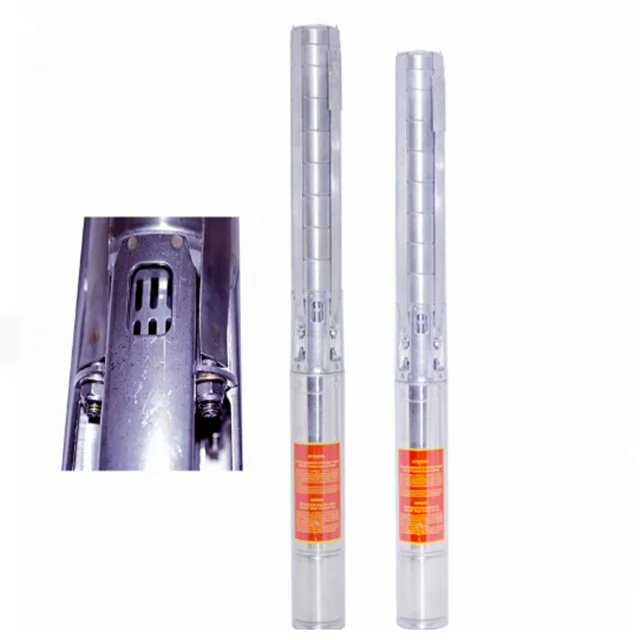

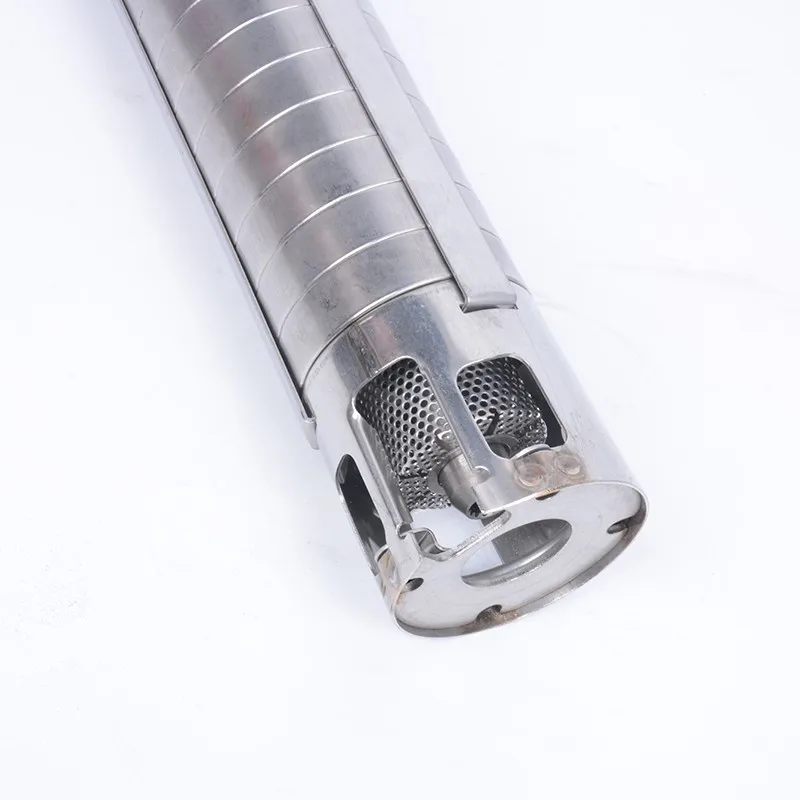

Detailed Images

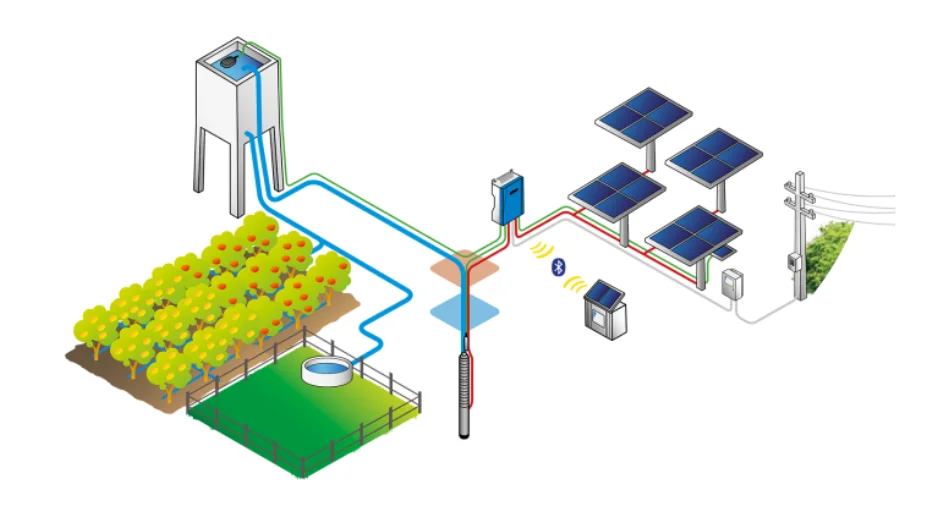

solar water pump operation conditions

1)Solid grain-or-fiber-free dilute clean non-corrosive liquids; .
2)Maximum liquid temperature: 25 °
Maximum working pressure: 38 bar
3)PH:6.5~8.5
4)Maximum diving depth: < 70m
For the sake of pump running safely and reliably,
user shall install the correct motor protector.


Typical applications.

1.Circulation or boosting for clean water,demineralized water.

2.Water supply,irrigation system.

3.Lower underground water level.

4.Boosting.

5.Industrial application.

Our Service

We can not only provide quality-assured products, but we can also help you design the system you need

Please offer us such information,the suitable solar water pumps system solution and quotation will be offered .water source:

Water source: Borehole (Diameter: _______mm)

Lake, river, reservoir, dam

Average daily water demand: __________ m3

H (lift from lowest water level to the top site): __________m

L (Horizontal distance for water transport): _______m

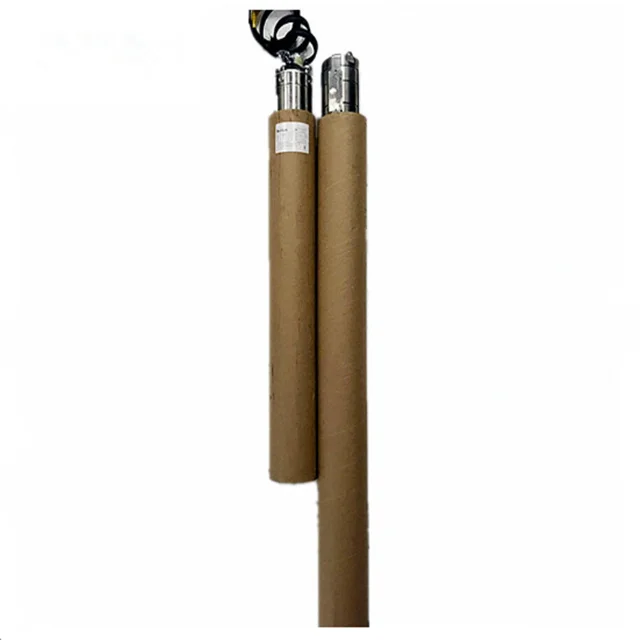

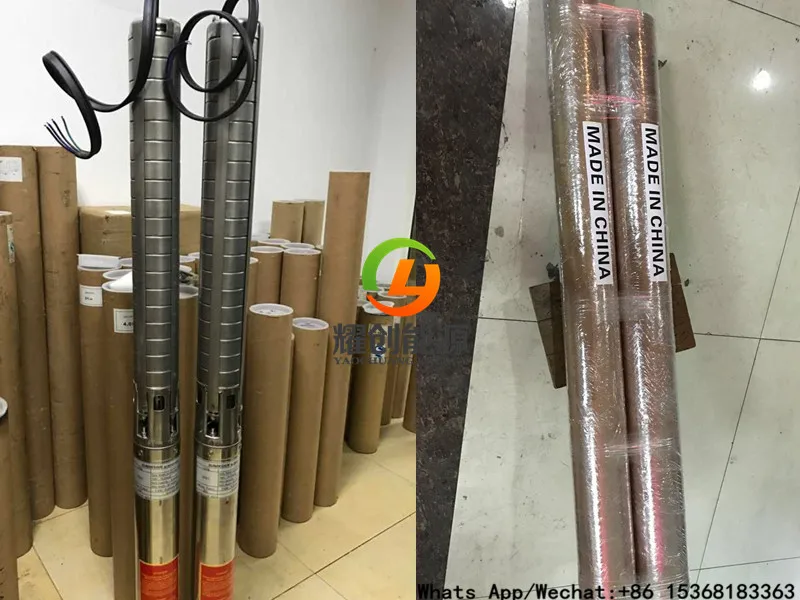

Packing & Delivery
