100m max head submersible solar pump 1.8m3/h solar water well pumps solar water pumping system for deep well

FOB Reference Price:Get Latest Price
  • 1 - 9 Sets
    $1,699.00
  • >=10 Sets
    $1,199.00
Lead Time:
Quantity(Sets) 1 - 1 >1
Est. Time(days) 15 Negotiable
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Shanghai, China (Mainland)
Brand Name:
Yaochuang
Model Number:
100m head solar water pump
Solar Power (W):
1hp to 25hp submersible pump
Specification:
Normal
Application:
Home, agriculture irrigation & daily water supply
Output Voltage (V):
110/120/220/230V/380V
Load Power (W):
1hp to 25hp submersible pump
Work Time (h):
4-8 hours
Name:
100m head submersible pump
Type:
220V single phase & 380V three phase
Inverter:
Mppt inverter
Material:
full stainless steel
Function:
Household Appliance Etc
Keyword:
Solar Powered Water Pump
Solar system technology:
IPM or IGBT of Mitsubishi
Description:
Submersible, solar pump for irrigation, irrigation/home
Solar inverter:
1kw/2kw/3kw/5kw/10kw Inverter
Supply Ability
Supply Ability:
9999 Set/Sets per Month
Packaging & Delivery
Packaging Details
standard international package
Port
Shanghai
Lead Time :
Quantity(Sets) 1 - 1 >1
Est. Time(days) 15 To be negotiated
Product Description

100m max head submersible solar pump 1.8m3/h solar water well pumps solar water pumping system for deep well

Dear Sir/Madam,


Thanks for your interests in our products, It's  Amber, sales engineer of Yunnan Yaochuang Energy Development Co., Ltd., we manufacture solar water pump system for agriculture.

New energy apply to agriculture is more and more popular, particularly solar water pump system, for many farmlands without 3 phase electricity grid, owners have to pay much cost on diesel generator to drive 380V 3 phase water pump, it consumes lots diesel oil everyday for irrigating.

Have you ever thought building a solar energy system to drive water pump?
One time investment, low maintain cost, no electricity or fuel oil consumption. The solar water pump system supports pumping water 8-10 hours in sunny days, and over 25 years service life.

Note:You will get payback within 10-24 months.


How does solar water pump system work?

The solar pumping system is composed of solar pumping inverter, 3 phase AC pump, and solar array. The solar array is composed of many solar cells panels in series and in parallel, and absorbs irradiation from Sunlight, and converts into electrical energy (DC). Inverter controls and regulates pumping operation system and converts DC voltage from PV modules to AC to drive the AC pump, with the function of MPPT and it regulates the output frequency according to irradiation in actual time to achieve the maximum power. The AC pump driven by a 3 phase induction motor, draws water from well or rivers and lakes, then water reserved on tank/ponds for irrigation systems or other applications. Based on the requirements and installation conditions, different types of pumps will be required.

Detailed Images

How to get formal quotation efficiently?

♥ 1) Water source: Borehole (Diameter: _______mm) Lake, river, reservoir,

♥ 2)Average daily water demand: __________ m3

♥ 3)H (lift from lowest water level to the top site): __________m


 ♥ 4)L (Horizontal distance for water transport): _______m

Yaochuang Energy solar water pump system application


♥ Water supply for remote villages and homes;

♥ Irrigation of farms and gardens;

♥ Wildlife watering;

♥ Filling of Fish ponds and Swimming pools;

♥ Surface water pumping for landscaping streams and waterfalls;

♥ Cattle, livestock watering systems (animal husbandry);

♥ Water supply for sea islands;

♥ Water treatment projects;

♥ Alternate system for water supply to counter grid power outrages.

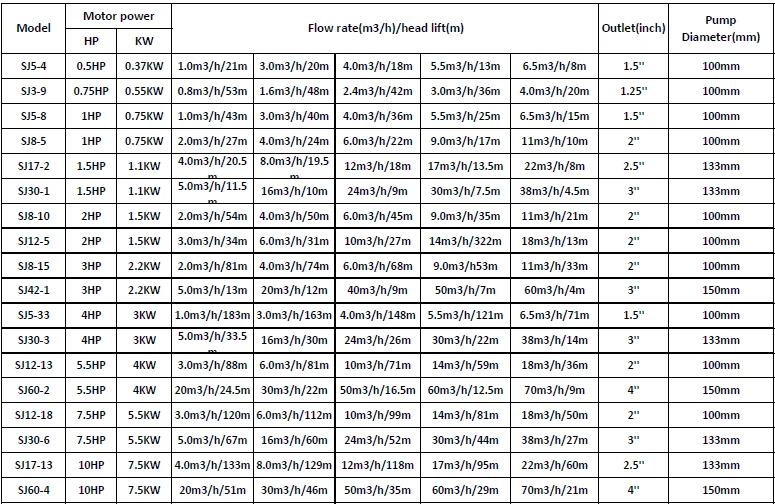

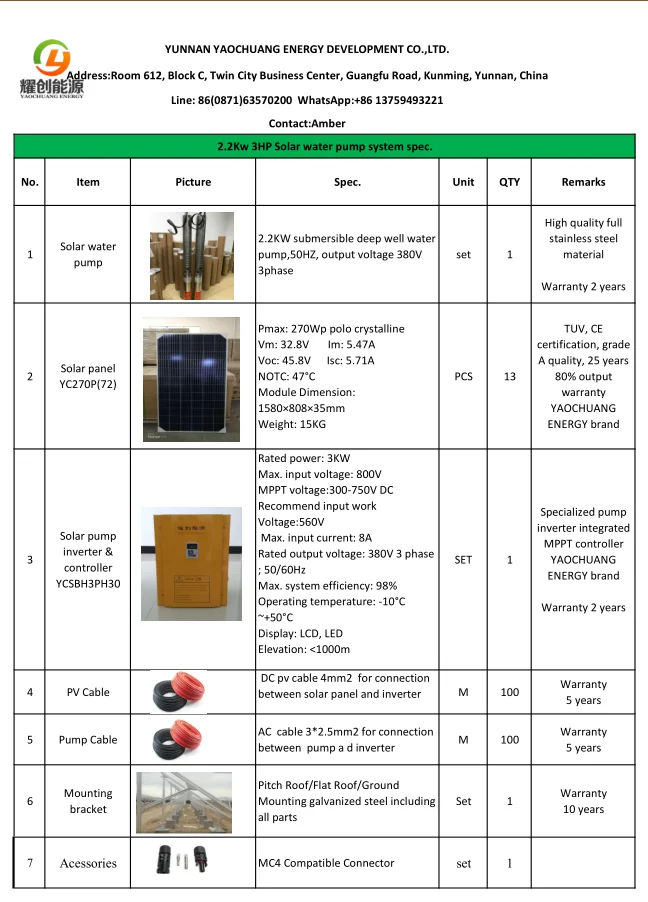

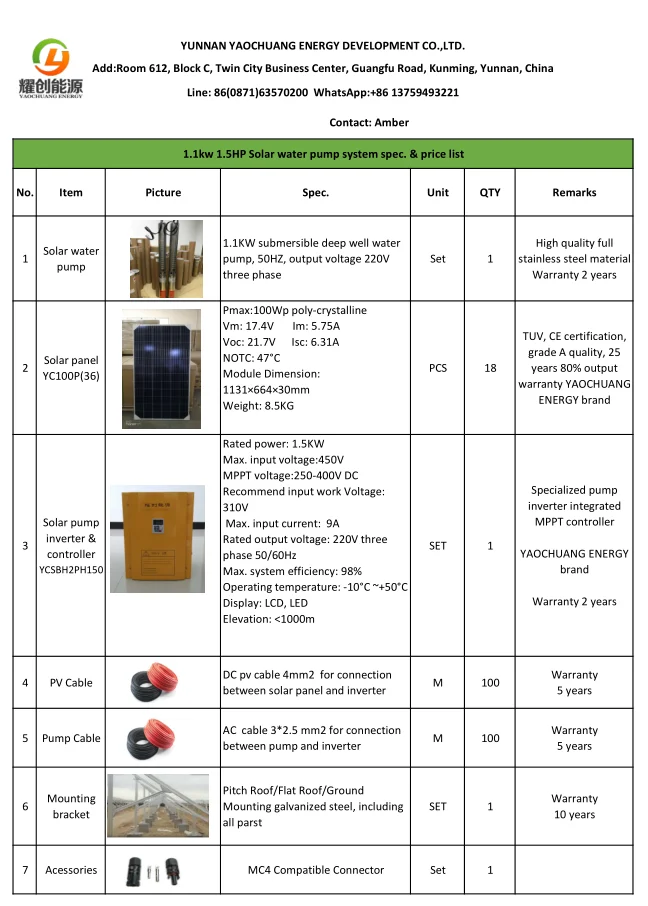

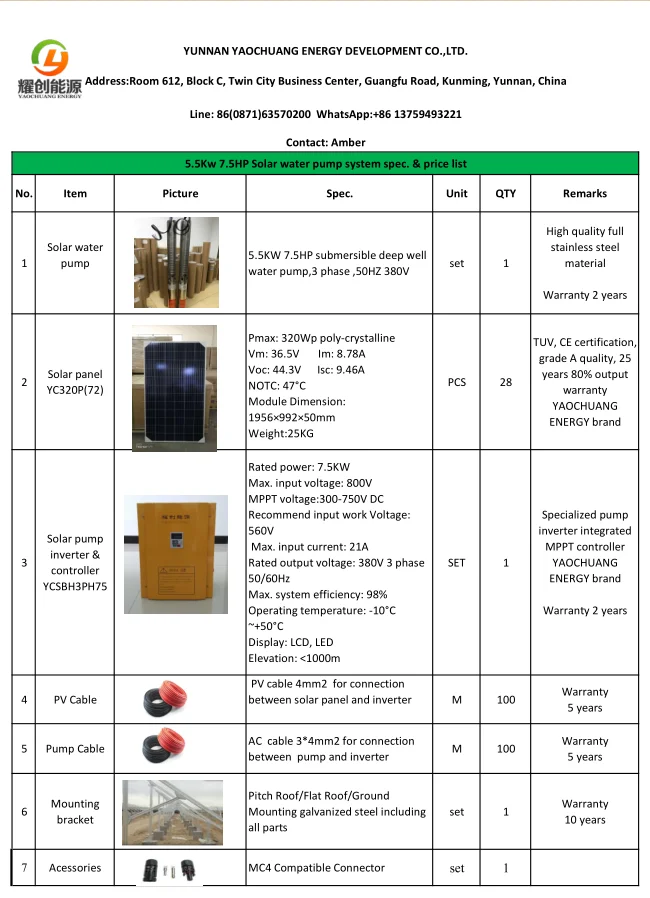

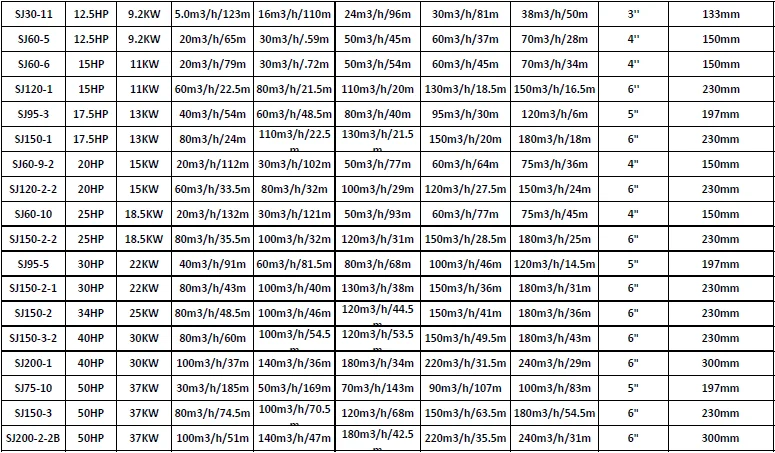

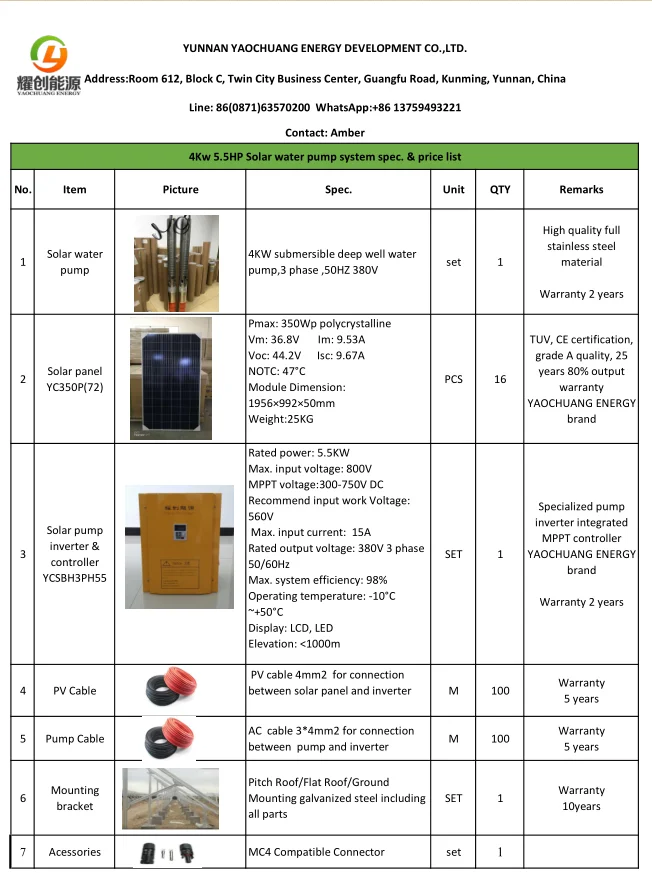

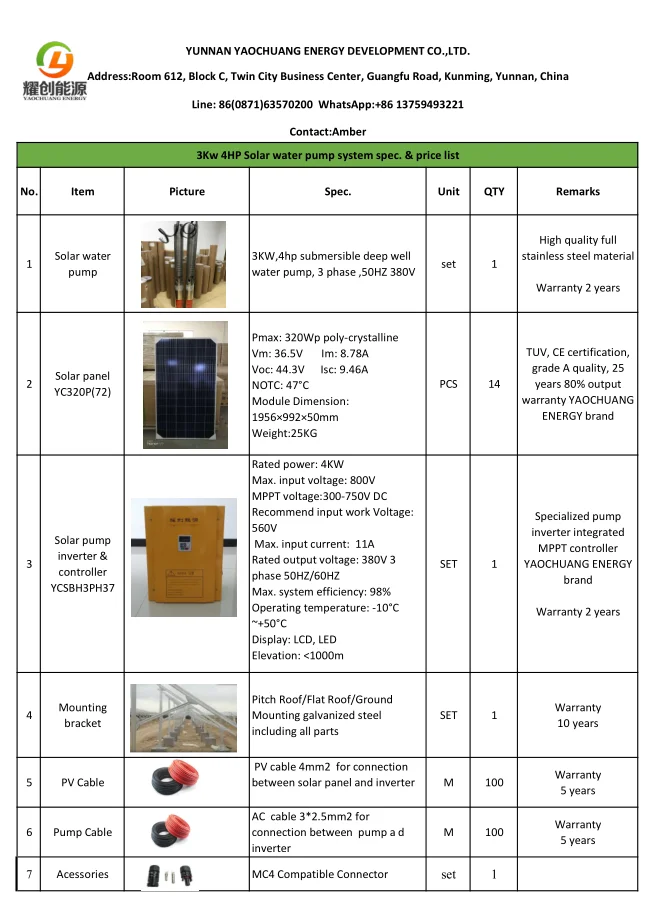

Configuration&Model

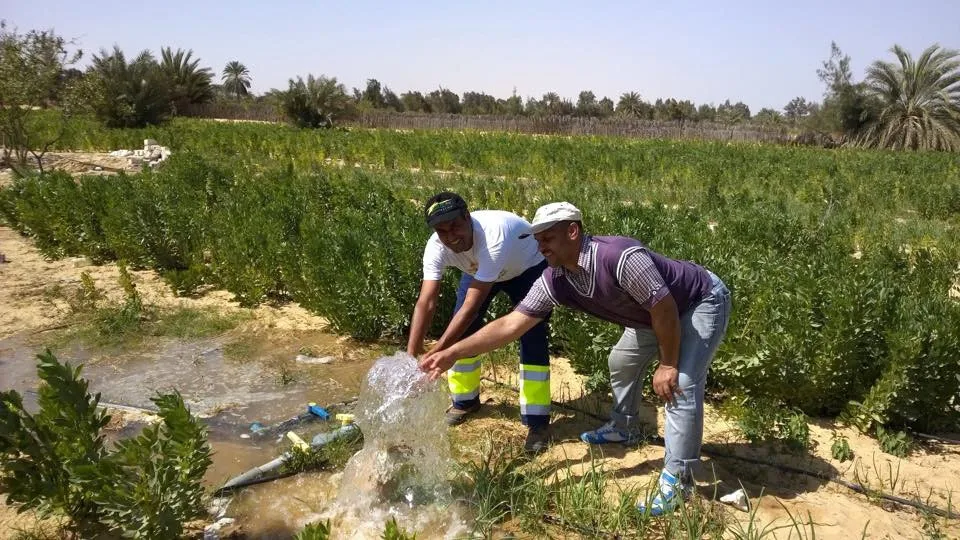

Project show
Our service
Quality ahead, credit standing paramountcy, user first, service the supreme is our tenet.


Pre-sale service:

1. Free of making offers, craft and technical guidance timely.

2. We can also make customized products according to your needs.


After-sale service:

1. We provide long-term after-sale service.

2. Just call or email to consult any relevant questions since we have a special line of aftersale service which will be available all day,or you can communicate online with our foreign sales and solve the problems.

3. We will send many new styles every week to our old customers.

Any doubt or want to know further about solar products,please feel free to contact us or send me inquiry .

We provide customized service for solar water pump system!

Contact Amber by :

Wechat&WhatsApp: + 86 13759493221

Email: solar(at)thesolarwaterpump.com
