Wholesale High Pressure 22kw solar power water pump deep well pump flow rate 30000litres/hour Head 7Meter- 200M for irrigation

FOB Reference Price:Get Latest Price
  • 1 - 4 Sets
    US $78.00
  • >=5 Sets
    US $58.00
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Shanghai, China (Mainland)
Brand Name:
solar water pump
Model Number:
YC solar water pump
Theory:
Centrifugal Pump
Structure:
Multistage Pump
Usage:
Water
Power:
Electric
Standard or Nonstandard:
Standard
Fuel:
solar energy
Pressure:
High Pressure
Application:
Submersible
Material:
Stainless Steel
Product name:
DC solar water pump
Certificate:
CE TUV ROHS
Equipments:
solar panel, inverter,solar water pump
Warranty:
10Years
Working time:
8-10hours/day
Feature:
High Efficiency
Head:
30-230M
Flow:
12-180m3
Type:
solar water pump irrigation
Supply Ability
Supply Ability:
999 Set/Sets per Month
Packaging & Delivery
Packaging Details
Standared package
Port
Shanghai

Wholesale High Pressure 22kw solar power water pump deep well pump flow rate 30000litres/hour Head 7Meter- 200M for irrigation



Application Area

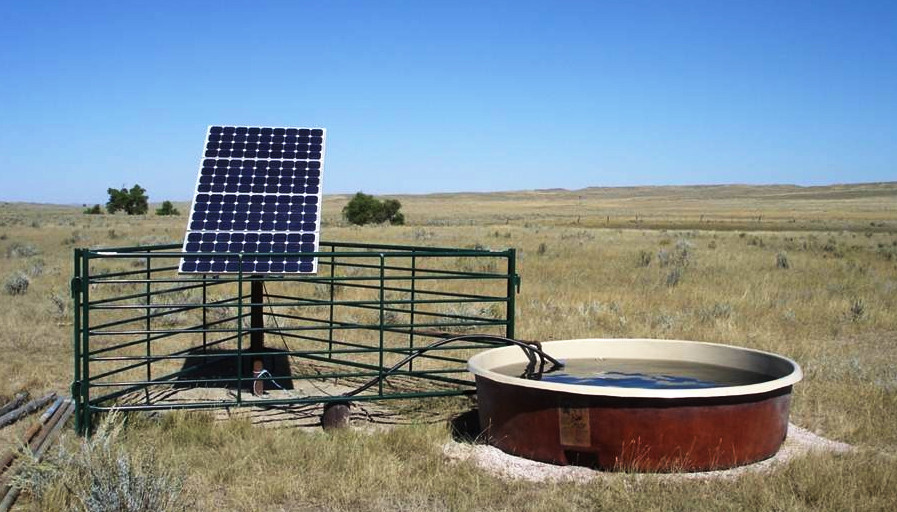

 This solar water pump system project mainly used in dry region for irrigation of ariculture, be much improved. It can be used for drinking water and living water. The living condition could be much improved. It also can be used for fountains.

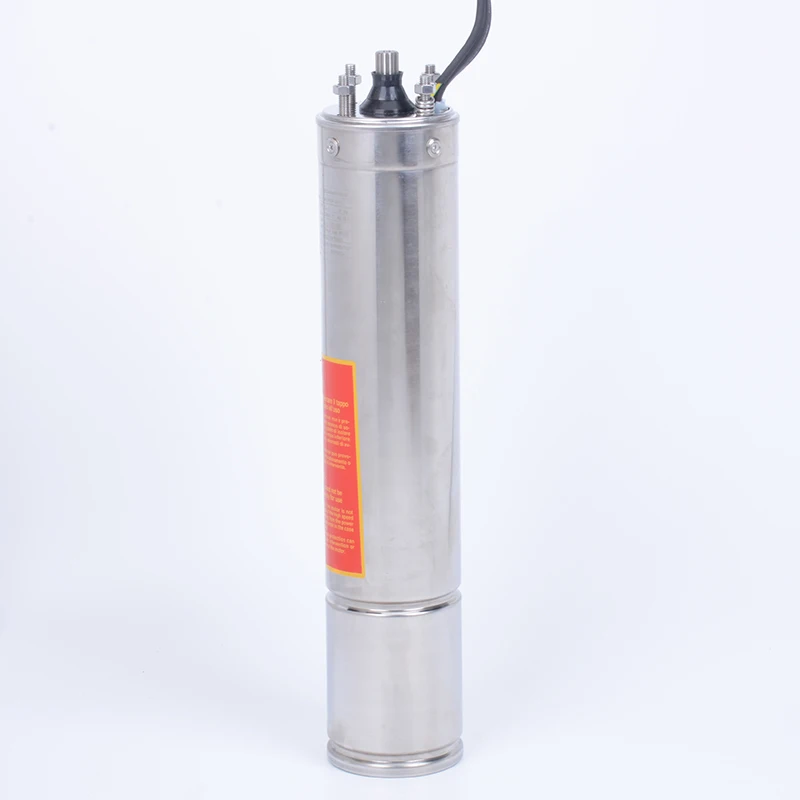

22KW submersible deep well solar water pump specification

22kw pump.png







 Solar pump controller integrated inverter (solar water pump inverter)


 Rated power:30KW

 Max. input voltage: 800V MPPT

 voltage:300-750V

 DC Recommend input work Voltage: 560V

 Max. input current:82.5A

 Rated output voltage: 380V 3 phase 50/60Hz

 Max. system efficiency: 98%

 Operating temperature: -10°C ~+50°C

 Display: LCD, LED

 Elevation: <1000m "





 PV array (solar panel)

260W solar panel



 YC340W(P) 90PCS



Pmax. 340W Poly

Vm: 36.7V

Im: 9.26A

Voc: 44.8V

sc: 9.62A

Size: 1962×992×50mm

Weight: 22.5KG

Connect way: 15pcs in serie as a string ,6 strings in parallels



TUV, CE certification,

grade A quality,

25 years

80% output warranty

YAOCHUANG ENERGY brand







Details of solar water pump



1(1).jpg1(3).jpg1.jpg4.jpg4SJ pump 6.jpg water pump package 1water pump package 2









If you need a set solar water pump system, please inform us

8d9297e7a7c08dd2e189f164fb9a3375

1) The system installation Country _________ City __________



2) daily water supply ________ m3



3) Vertical height from water level to ground H1 (Static Head) __________ m



4) Vertical height from tank (if any) to ground H2 ________ m



5) Horizontal distance from tank (if any) to water source L __________ m



6) Water level drop when pumping water H3 (Dynamic head) ___________ m



7) Diameter D ________ mm (if it is a borehole)







Contact us freely!
