Each panel wrap with carton box, 10pcs panels in pallet
Water pump wrap with carton box or wooden box
1 - 100
To be negotiated
4 inch 6 inch 8 inch 7.5KW 10hp solar deep water pump system high efficiency roof mounting solar pumps

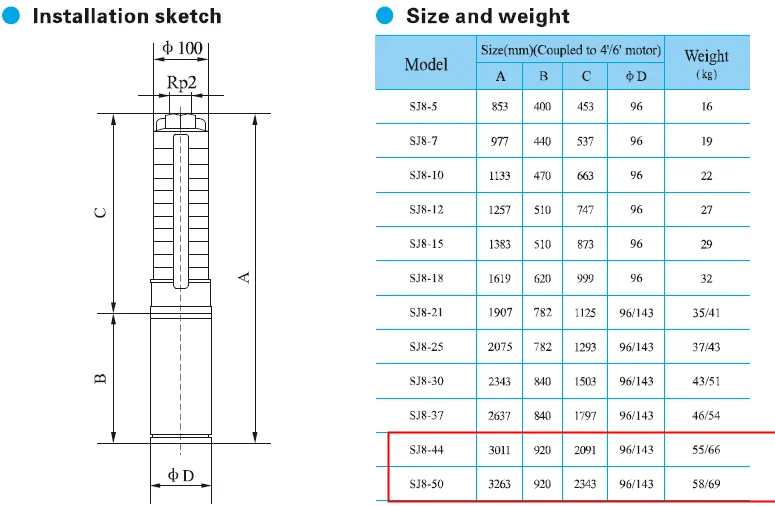

Size and weight

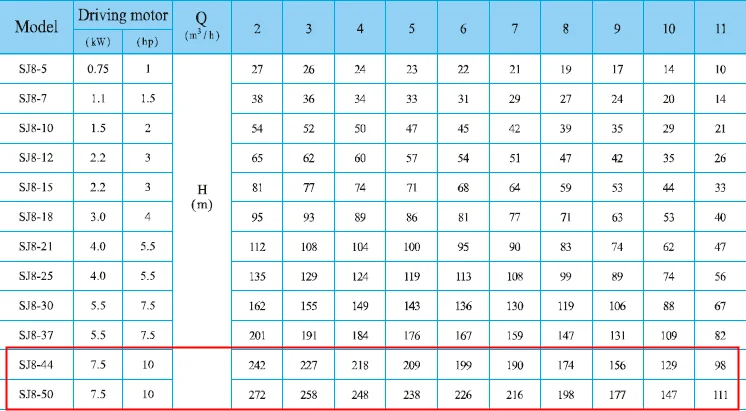

Welcome your inqury for more series of SJ,SP and ZS
Water pump solution
The solar water pump system is composed of solar pump inverter, 3 phase AC submersible solar water pump, and solar array. The solar array is composed of many solar cells panels in series and in parallel, and absorbs irradiation from Sunlight, and converts into electrical energy (DC). Inverter controls and regulates pumping operation system and converts DC voltage from PV modules to AC to drive the AC pump, with the function of MPPT and it regulates the output frequency according to irradiation in actual time to achieve the maximum power. The AC pump driven by a 3 phase induction motor, draws water from well or rivers and lakes, then water reserved on tank/ponds for irrigation systems or other applications. Based on the requirements and installation conditions, different types of pumps will be required.
1)The system installation Country _________ City __________
2)Daily water supply _______ m3
3) Vertical height from water level to ground H1 (Static Head) __________ m
4) Vertical height from tank (if any) to ground H2 _______ m
5) Horizontal distance from tank (if any) to water source L _________ m
6) Diameter D _______ for the borehole , pond or well
7.5Kw 10HP Solar water pump system spec
Solar water pump
7.5KW 10hp submersible deep well water pump,3 phase 50HZ 380V
TUV, CE certification, grade A quality, 25 years 80% output warranty
YAOCHUANG ENERGY brand
Solar pump inverter & controller YCSBH3PH110
Rated power: 11KW Max. input voltage: 800V MPPT voltage:300-750V DC Recommend input work Voltage: 560V Max. input current: 28A Rated output voltage: 380V 3 phase 50hz Max. system efficiency: 98% Operating temperature: -10°C ~+50°C Display: LCD, LED Elevation: <1000m
Specialized pump inverter integrated MPPT controller YAOCHUANG ENERGY brand
Warranty 2 years
PV cable 4mm2 for connection between solar panel and inverter
Warranty 5 years
AC cable 3*6mm2 for connection between pump and inverter
Warranty 5 years
Pitch Roof/Flat Roof/Ground Mounting galvanized steel including all parts
Warranty 10 years
MC4 Compatible Connector
Warranty 2 years
Quality assurance and technical support.
the lamination process to detect problems within the module, this helps the quality department to optimize all processes and try to decrease as much losses as possible.
Answer technical questions concerning electrical and mechanical characteristics.
Provide project initial estimates, site survey, system sizing and component selection.
Preparing suitable designs of maximum efficiency for each proposal.
Arrange the engineer to install.
High Efficiency .
Yaochuang solar panels are produced using high efficiency solar cells with more than 90% power output and 25 years warranty.
Long-term and stable cooperation with customers.
We have accumulated distributors and retailers from various countries and have been cooperating with them for a long time
We are committed to the ongoing advancement of efficiency and quality of our products by using world class manufacturing facility to insure delivering highest quality, values, and adding the best quality of raw materials
Solar Pumping Systems
Solar Street Lighting Systems
Off Grid Solar Kits
Application solar water pump system
>> Water supply for remote villages and homes; >> Irrigation of farms and gardens; >> Wildlife watering; >> Filling of Fish ponds and Swimming pools; >> Surface water pumping for landscaping streams and waterfalls; >> Cattle, livestock watering systems (animal husbandry); >> Water supply for sea islands; >> Water treatment projec >> Alternate system for water supply to counter grid power outrages.
YUNNAN YAOCHUANG ENERGY DEVELOPMENT CO.,LTD is engaged in producing solar modules and PV applications with perfect quality, and have built excellent cooperative relationship with world-class famous PV manufacturers and installers. Our products not only get domestic clients' high praise, but also export to Africa, South America, Southeast Asia, and The Middle East.
Presently, our main products are solar panels and PV applications, including solar modules, off-grid system, and correlative equipments, and serve for energy power, lighting, communication, traffic, agriculture, weather forecast and so on. We believe in innovation, cooperation, teamwork, speed spirit, and continue to exploit, and work hard. So that the cost of products can be reduced, and we can provide clean and substantial new energy to our clients, and get brighter future!
