Best price high quality av/dc solar submersibler pump system with solar panels MPPT for irrigation

FOB Reference Price:Get Latest Price
  • 1 - 99 Watts
    US $1.00
  • >=100 Watts
    US $0.60
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Zhejiang, China (Mainland)
Brand Name:
Yaochuang
Model Number:
Yaochuang
Specification:
Normal
Application:
Industrial
Output Voltage (V):
220V/380V
Load Power (W):
25KW
Solar Power (W):
35KW
Work Time (h):
24H
Product name:
Solar Power System
Solar panel:
Poly/mono Silicon
Certificate:
CE/IEC/TUV/ROHS
Warranty:
5 Years
Material:
Stainless
Keyword:
Solar Power Water Pumping
Installation Site:
Rooftop
Solar system:
Solar Panles System
Usage:
Industrial
Inverter:
Yaochuang Brand
Supply Ability
Supply Ability:
10000 Set/Sets per Month
Packaging & Delivery
Packaging Details
Standard export package, composite material box
Port
Ningbo/Shanghai/Shenzhen
Lead Time :
Quantity(Watts) 1 - 30000 30001 - 300000 >300000
Est. Time(day) 5 15 To be negotiated
Product Introduction



Product Details

Advantages:

Best price high quality av/dc solar submersibler pump system with solar panels MPPT for irrigation

Solid grain or fiber free dilute clean non-corrosive liquid
Max diving depth
<=70M
Head lift
20-400M
Flow
1-200000liters/H
Daily water supply
3-1000tons
Outlet
1.25-6in

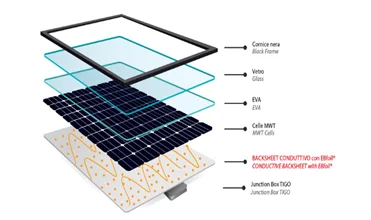

Solar panel



model
cell numbers
weight(KG)
peak power(W)
max operating current (A)
max operating voltage(V)
short circuit current(A)
open circuit voltage(V)
YC360P(72)
6*12
25
360
9.8
36.7
8.7
44.8
YC300P(72)
300
8.26
36.32
8.679
44.8
YC295(72)
295
8.17
36.11
8.72
44.6
YC290P(72)
290
8.08
35.89
8.62
44.4
YC255P(60)
6*10
19.5
255
8.39
30.39
8.93
37.5
YC250P(60)
250
8.28
30.19
8.82
37.3
YC245P(60)
245
8.28
29.59
8.72
37.1
YC220P(54)
6*9
17.5
220
8.17
26.93
8.54
33.9
YC215P(54)
215
8.03
26.77
8.4
33.7
YC210P(54)
210
7.87
26.68
8.23
33.6
YC200P(48)
6*8
15.8
200
8.3
24.10
8.73
30.1
YC195P(48)
195
8.19
23.81
8.65
29.8
YC190P(48)
190
8.05
23.60
8.48
29.6
MPPT inverter
Rated power
30KW
Max input voltage
800V
mppt voltage
300-750V DC
Recommend input work voltage
560
Max input current
56A
Rated output voltage
380V 3phase 50HZ
Max system efficiency
98%
Operating temperature
-10---+50°C
Elevation
<1000M
Certifcates
CE/IEC/TUV/IOS

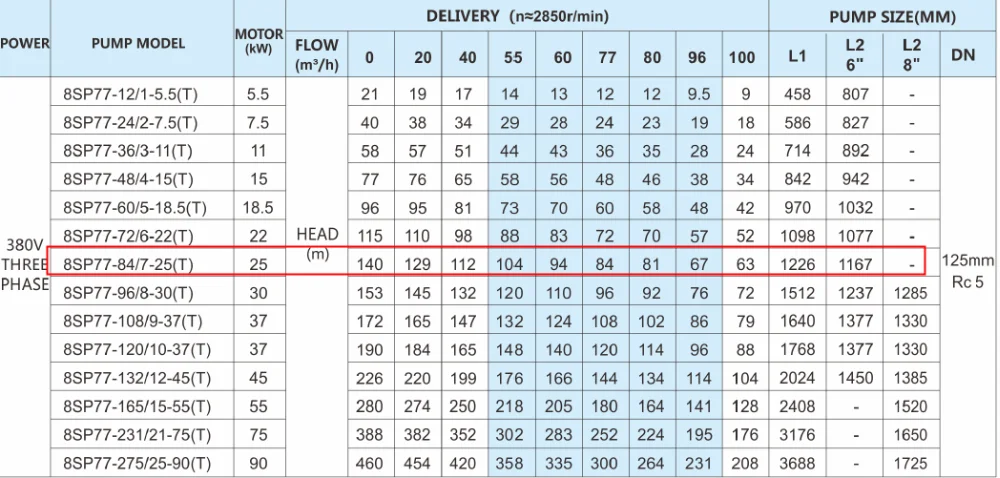

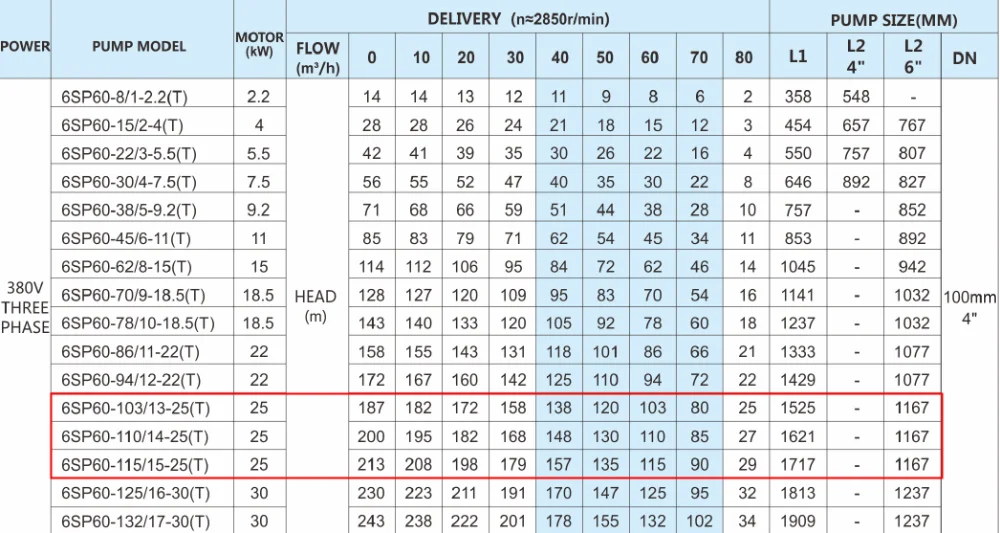

Pump Parameters

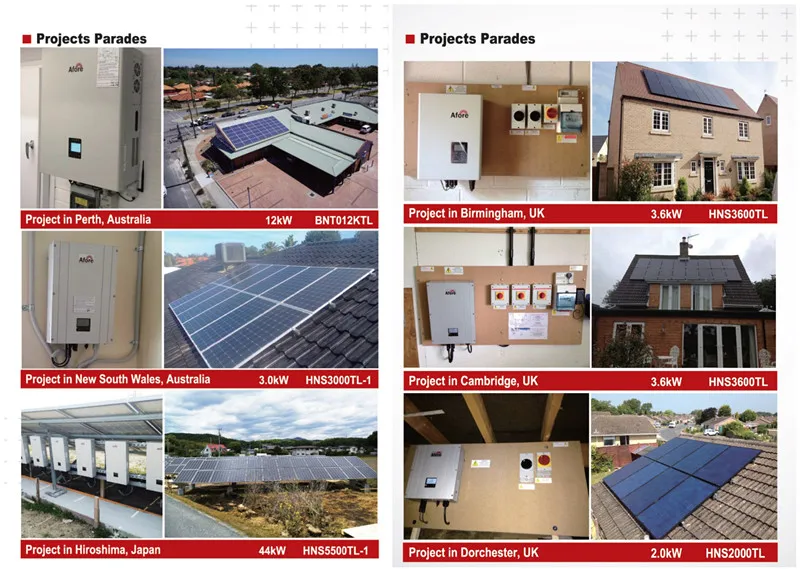

Projects show
Certificates
Our Company
YUNNAN YAOCHUANG ENERGY DEVELOPMENT CO.,LTD is engaged in producing solar modules and PV applications with perfect quality, and have built excellent cooperative relationship with world-class famous PV manufacturers and installers. Our products not only get domestic clients' high praise, but also export to Africa, South America, Southeast Asia, and The Middle East.

Presently, our main products are solar panels and PV applications, including solar modules, off-grid system, and correlative equipments, and serve for energy power, lighting, communication, traffic, agriculture, weather forecast and so on. We believe in innovation, cooperation, teamwork, speed spirit, and continue to exploit, and work hard. So that the cost of products can be reduced, and we can provide clean and substantial new energy to our clients, and get brighter future
