2018 Newest pure sine wave MPPT solar off grid system inverter 1KW for solar home power system

FOB Reference Price:Get Latest Price
US $2.2-3 / Watts | 1000 Watt/Watts (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Shanghai, China (Mainland)
Brand Name:
OEM
Model Number:
solar off grid system
Specification:
Normal
Application:
Home
Output Voltage (V):
110/120/220/230V
Load Power (W):
1KW
Solar Power (W):
1KW
Work Time (h):
3-4 Hours
Rated Power:
1000W
Battery Voltage:
24Vdc
Battery Voltage range:
21Vdc-30Vdc
Input Voltage(AC):
220Vac(145Vac-275ac)
Input Frequency:
50Hz(45Hz-55Hz)
Output Voltage(AC):
220Vac(Battery mode±3%,Mains mode±10%)
Output Frequency:
50Hz
Transfer Efficiency:
83%(100%Load)88%(50%Load)
Output Wave:
Standard Sine Wave
Temperature:
-10℃ ~ 50℃
Supply Ability
Supply Ability:
50 Set/Sets per Week
Packaging & Delivery
Packaging Details
standard exoport package for 1KW off grid solar system
Port
Shanghai
Lead Time :
Quantity(Watts) 1 - 50 51 - 100 >100
Est. Time(day) 7 15 To be negotiated

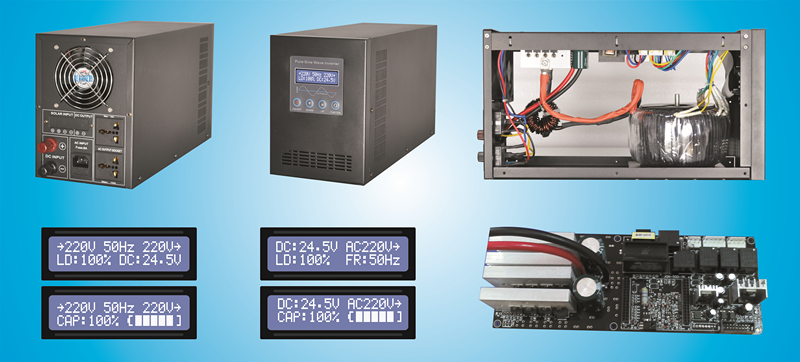

2018 Newest pure sine wave MPPT solar off grid system inverter 1KW for solar home power system



Motor frequency Sine wave inverter   24v 1000w



1000w 24v.png



Feature

1. Toroidal transformer of light weight, small size, high conversion efficiency, low power consumption, good load capacity and load adaptability, etc.

2. AC input automatic voltage regulator (AVR), input voltage range of 145V ~ 275V.

3. Liquid crystal (LCD) display, backlight power saving mode. The main display real-time battery voltage, battery capacity, input and output voltage, output frequency, duty ratio, etc. Automatically switch the display according to different working conditions.

4. Having overload, battery overcharge, over discharge, output short circuit, over-temperature protection features.

5.Full SMD modular structure, stable performance, easy maintenance.











Product Description

Advantages:

-CE,TUV approved.

-High conversation efficiency,high-transmission rate.

-Energy saving,environmental-friendly.

-Easy installation,safe operation,free maintenance.

-Low MOQ,fast devivery time,long service

Specification

Ref NO.YC1020W-OFF
System Basic InformationSolar Panel Rated Output Power
suitable for Max Daily Power Consumption
 Solar Panel
Typepoly-crystalline Silicon PV Module,A-class3pcs
Max Power340W
Vm36.7V
Size1962mm*992*50mm
Weight22.5KG

 Controller
Voltage24V1pc
Size150*135*63mm
Weight1.15KG

 Battery
Capacities12V/200AH2pcs
Warranty2-5 years
Solar Panel Rackon roof mounting bracket1set
CablePV1*4mm250



Certifications


certificate

Contact




If you have any question,or you want to know more about our company and products,contact me at any time.I will try to reply you as soon as possible.: D
