Off grid pure sine wave inverter high quality solar water pump inverter inverters mppt

FOB Reference Price:Get Latest Price
  • 1 - 99 Sets
    US $450.00
  • >=100 Sets
    US $350.00
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Shanghai, China (Mainland)
Brand Name:
Yaochuang
Model Number:
solar pump inverter
Specification:
Normal
Application:
Industrial
Output Voltage (V):
220V/380V
Load Power (W):
1-10KW
Solar Power (W):
3-15kw
Work Time (h):
24HOURS
Product name:
Pure Sine Wave Inverter
Certificate:
CE/UL/ISO/IEC61215/IEC61730
Warranty:
2 Years
Color:
Yellow
Keyword:
Pure Sine Wave Inverter
Weight:
10kg
Battery type:
lead-acid cell / lithium battery
Mounting Type:
Aluminum Solar Mounting
Solar panel:
Monocrystalline silicon panels/Polysilicon panels
Function:
convert
Supply Ability
Supply Ability:
1000 Set/Sets per Week
Packaging & Delivery
Packaging Details
Standard
Port
Ningbo
Lead Time :
Quantity(Sets) 1 - 1000 1001 - 10000 >10000
Est. Time(day) 5 15 To be negotiated

Off Grid Pure Sine Wave Inverter Industrial/home/High Quality Solar Panels And Inverters  Mppt home Inverter



Product Description

Inverters convert direct current energy (battery, storage battery) into alternating current (generally 220V,50Hz sinusoidal wave).It consists of inverter bridge, control logic and filter circuit.Widely used for air conditioning, home theater, electric grinding wheel, electric tools, sewing machine, DVD, VCD, computer, TV, washing machine, lampblack machine, refrigerator, VCR, massager, fan, lighting.

YCSB solar water pump controller adopts maximum power point tracking and mature motor driving technology to maximize the output power of PV array. It supports DC and AC input, if sunshine is insufficient, the controller will switch to single or three phase AC input, such as genset or battery.




Parameters
ModelYCSBH3PH110YCSBH3PH150YCSBH3PH180YCSBH3PH220YCSBH3PH300YCSBH3PH350YCSBH3PH450
Rated capacity(KW)11151822303545
Max. input voltage(V)800
MPPT voltage range(V)300-750
Recommend input work voltage(V)560
Max. input current(A)3541566983113139
Max. MPPT efficiency97%
Recommend pv array power(kw)13.816.522.527.8334555.5
Input road2
Max, drive motor power(kw)9.2111518.5223037
Rated output voltage(V)380V 3 phase
Output frequency0~50/60Hz
Max. system efficiency98%
Operating temperature rangefrom-10℃ to +40℃
Cooling methodNatural cooling + air cooling
DisplayLCD
Altitude1000m,above 1000m need derate power 1000m
Meet the standardsEN 50178; IEC/EN 62109-1; IEC 61800

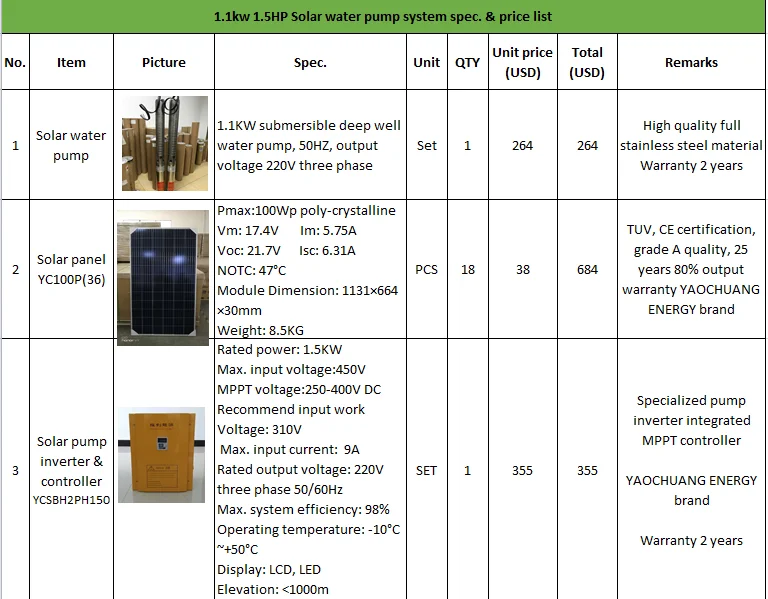

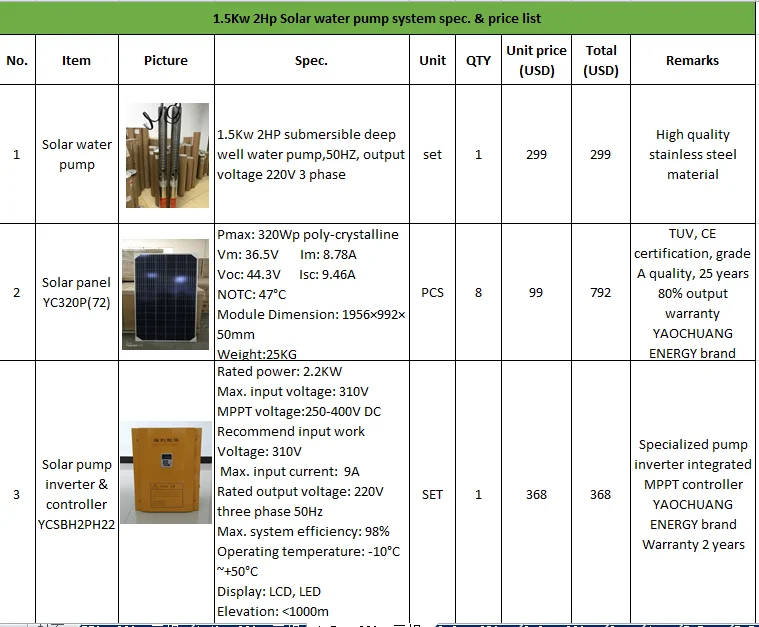

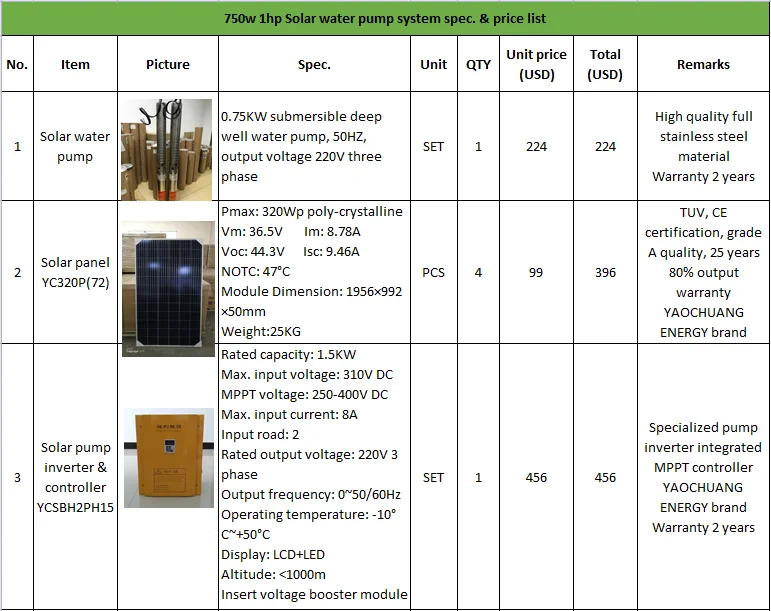

Several price list

1 (1).png1 (2).png1 (3).png

 Feel free to discuss more the systems and price

Projects


Our Factory


Company Information

YUNNAN YAOCHUANG ENERGY DEVELOPMENT CO.,LTD is engaged in producing solar modules and PV applications with perfect quality, and have built excellent cooperative relationship with world-class famous PV manufacturers and installers. Our products not only get domestic clients’ high praise, but also export to Africa, South America, Southeast Asia, and The Middle East......




Certifications


certificate

Packaging & Shipping

.jpg

Contact
