Home or commercial mini solar power plant solar energy systems off grid 3kw 5kw 10kw 20kw 30kw solar power solar energy system

  • 1 - 9 Sets
    US $1896.00
  • >=10 Sets
    US $1569.00
System Type:
Off-Grid Solar System On-Grid Solar System Hybrid Solar System 3kw of grid system 5kw off grid system 10kw off grid system 15kw off grid solar system 20kw off grid solar system 30kw off grid solar system
Solar Power (W):
Customized 3kw off grid solar power system 5kw off grid solar power system 10kw off grid solar power system 15kw off grid solar energy system 20kw off grid solar energy system 30kw off grid solar system home
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Shanghai, China (Mainland)
Brand Name:
Yaochuang off grid system
Model Number:
solar power system home
Specification:
Normal
Application:
Home
Output Voltage (V):
110/120/220/230V/380V
Load Power (W):
Customized
Work Time (h):
4-8 hours
Solar Panel Type:
Grade A Polycrystalline
Battery Type:
Lead Acid
Battery Capacity:
12v 200ah/ 150ah
Controller Type:
MPPT controller
Output Frequency:
50hz/60hz
Output voltage (v):
110/120V220/230/240v/ 380v
Product name:
solar power system home
Solar System Protection:
Overloads, Low Voltage and Under voltage (alarm)
Solar system technology:
IPM or IGBT of Mitsubishi
Solar inverter:
Off Grid Inverter
Output wave:
pure sine wave solar system
Solar panel rack:
flat ground and roof for optional
Solar system upgrade:
mini solar power plant solar energy system
Load:
light,refrigerator,air conditioner
Warranty:
25 Years Life Time
Supply Ability
Supply Ability:
9999 Set/Sets per Month
Packaging & Delivery
Packaging Details
standard international package
Port
Shanghai
Lead Time :
Quantity(Sets) 1 - 1 >1
Est. Time(day) 15 To be negotiated
Product Description

Home or commercial mini solar power plant solar energy systems off grid 3kw 5kw 10kw 20kw 30kw solar power solar energy system

Any doubts, pls feel free to contact us.


Contact Amber by:

Wechat:+ 86 137 5949 3221

Whatsapp: + 86 137 59493221

E-mail: solar(at)thesolarwaterpump.com

Solar Pv System

Solar photovoltaic system or Solar power system is one of renewable energy system which uses PV modules to convert sunlight into electricity. The electricity generated can be either stored or used directly, fed back into grid line or combined with one or more other electricity generators or more renewable energy source. Solar PV system is very reliable and clean source of electricity that can suit a wide range of applications such as residence, industry, agriculture, livestock, etc.

Solar PV system includes different components that should be selected according to your system type, site location and applications.

Detailed Images

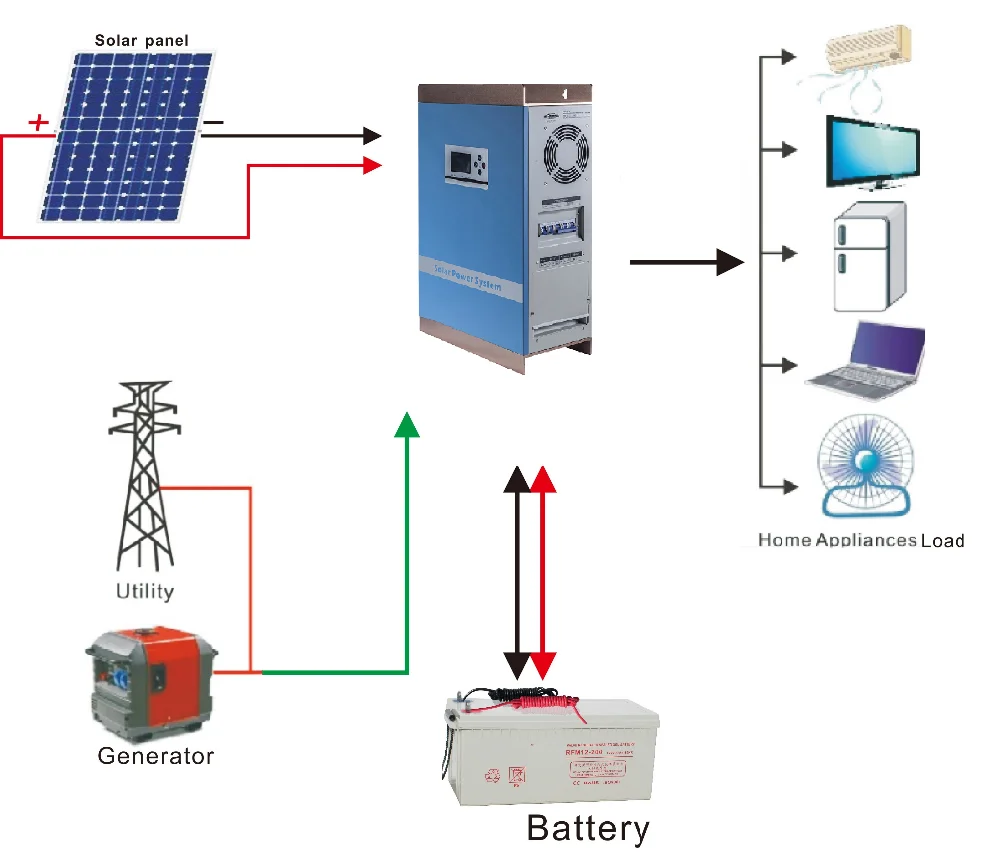

Major system components


• PV module – converts sunlight into DC electricity.


• Solar charge controller – regulates the voltage and current coming from the PV panels going to


battery and prevents battery overcharging and prolongs the battery life.


• Inverter – converts DC output of PV panels or wind turbine into a clean AC current for AC


appliances or fed back into grid line.


• Battery – stores energy for supplying to electrical appliances when there is a demand.


• Load – is electrical appliances that connected to solar PV system such as lights, radio, TV, computer, pump,refrigerator, etc.


• Auxiliary energy sources - is diesel generator or other renewable energy sources.

Solar panels

• A grade Positive power tolerance:0~+5W

• Potential Induced Degradation (PID) Resistant

• Modules binned by current to improve system performance

•100% EL double-inspection ensures modules are defects free

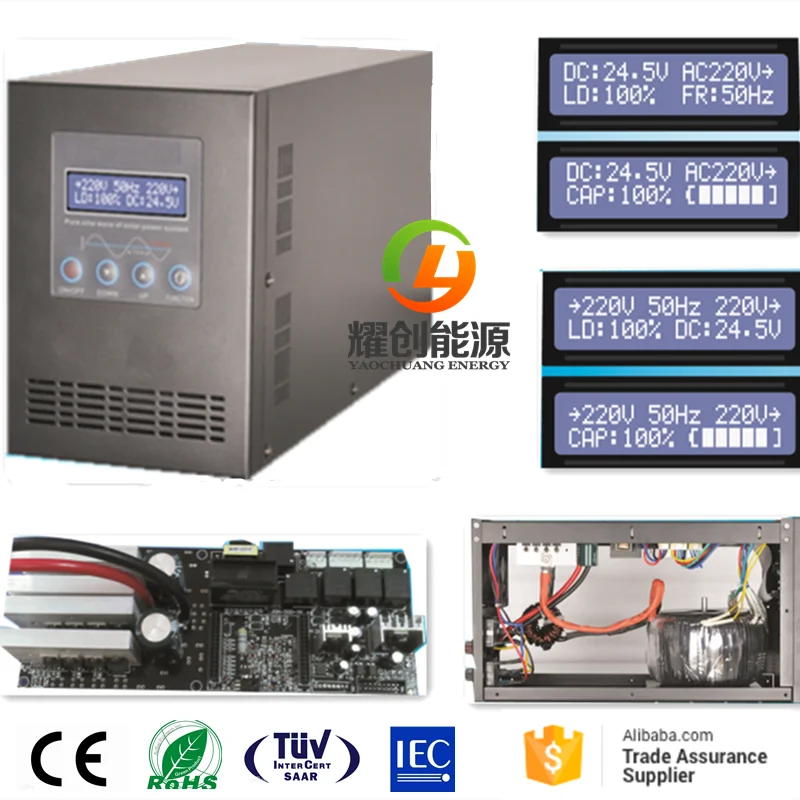

Solar Off Grid Inverter

1. Toroidal transformer of light weight, small size, high conversion efficiency, low power consumption, good load capacity and load adaptability, etc.

2. AC input automatic voltage regulator (AVR), input voltage range of 145V ~ 275V.


3. Liquid crystal (LCD) display, backlight power saving mode. The main display real-time battery voltage, battery capacity, input and output voltage, output frequency, duty ratio, etc. Automatically switch the display according to different working conditions.


4. Having overload, battery overcharge, over discharge, output short circuit, over-temperature protection features.

5. Full SMD modular structure, stable performance, easy maintenance.

Off grid solar charge controller


•Protection Functions

•Battery over-charge/discharge protection

•Over-current disconnect function

•Over-loading disconnect function

•Over-temperature protection

•Short circuit disconnect function

•Reverse polarity protection

•Anti-reverse charging on night

Solar Battery

•Low self-discharge and long shelf life

•Non-Spillable construction

•Safety valve installation for explosion proof

•Exceptional deep discharge recovery performance

•99.7% pure lead calcium grids and A recognized component of U.L

Solar Storage battery Advantages:

•Completely sealed and maintenance-free, low self-discharge

•100% precise quality testing, stable quality and high reliable performance

•Unique grid alloy formula and updated manufacturing technique

•Floating & standby use: up to 5 years

Packing & Delivery
