Hot sale borehole pump solar powered water pump made in China

FOB Reference Price:Get Latest Price
  • 1 - 9 Sets
    $1,299.00
  • >=10 Sets
    $1,000.00
Lead Time:
Quantity(Sets) 1 - 1 >1
Est. Time(days) 15 Negotiable
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Shanghai, China (Mainland)
Brand Name:
Yaochuang
Model Number:
solar water pump system
Solar Power (W):
Customized
Specification:
Normal
Application:
Home, agriculture irrigation & daily water supply
Output Voltage (V):
110/120/220/230V/380V
Load Power (W):
Customized
Work Time (h):
4-8 hours
Name:
solar powered borehole pump
Solar panel:
Polycrystalline Silicon
Warranty:
25 Years Life Time
Certificate:
CE RoHS IEC
Type:
220V single phase & 380V three phase
Inverter:
Mppt inverter
Material:
full stainless steel
Customized:
YES
Installation Site:
roof or ground optional
Supply Ability
Supply Ability:
9999 Set/Sets per Month
Packaging & Delivery
Packaging Details
standard international package
Port
Shanghai
Lead Time :
Quantity(Sets) 1 - 1 >1
Est. Time(days) 15 To be negotiated
Product Description

Hot sale borehole pump solar powered water pump made in China



Customized solar water pump system


Whole set solar water pump system design and quotation can be offered after confirming the pump model .

If you don't know such information ,please offer us below information.

1)Water source: Borehole (Diameter: _______mm) Lake, river, reservoir,

2)Average daily water demand: __________ m3

3)H (lift from lowest water level to the top site): __________m 4)L (Horizontal distance for water transport): _______m

Detailed Images


Dear Sir/Madam,
Thanks for your interests in our products, It's Amber, sales engineer of Yunnan Yaochuang Energy Development Co., Ltd., we manufacture solar water pump system for agriculture.

New energy apply to agriculture is more and more popular, particularly solar water pump system, for many farmlands without 3 phase electricity grid, owners have to pay much cost on diesel generator to drive 380V 3 phase water pump, it consumes lots diesel oil everyday for irrigating.

Have you ever thought building a solar energy system to drive water pump?

One time investment, low maintain cost, no electricity or fuel oil consumption. The solar water pump system supports pumping water 8-10 hours in sunny days, and over 25 years service life.

Note:You will get payback within 10-24 months.

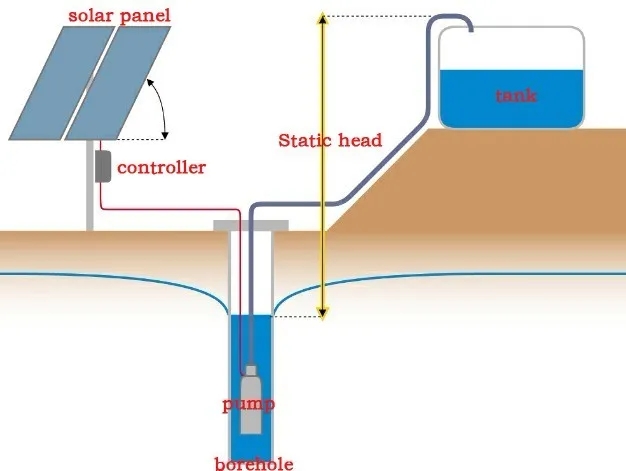

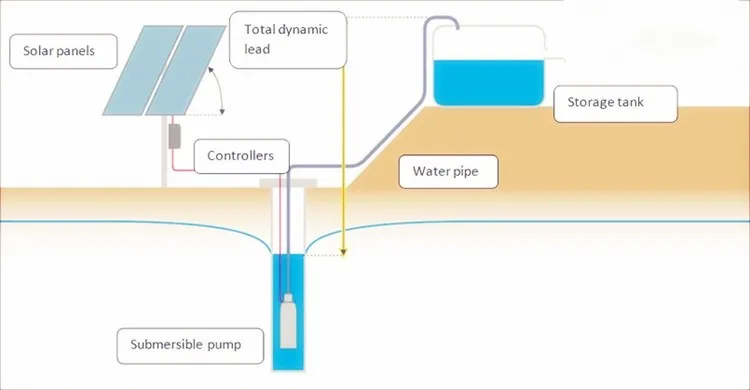

How does solar water pump system work?
The solar pumping system is composed of solar pumping inverter, 3 phase AC pump, and solar array. The solar array is composed of many solar cells panels in series and in parallel, and absorbs irradiation from Sunlight, and converts into electrical energy (DC). Inverter controls and regulates pumping operation system and converts DC voltage from PV modules to AC to drive the AC pump, with the function of MPPT and it regulates the output frequency according to irradiation in actual time to achieve the maximum power. The AC pump driven by a 3 phase induction motor, draws water from well or rivers and lakes, then water reserved on tank/ponds for irrigation systems or other applications. Based on the requirements and installation conditions, different types of pumps will be required.

Many customers also ask why there is no battery for night or cloudy days.Actually we suggest to build a water tank to instead of battery, because


♥ 1) The system with battery will decrease whole system efficiency and increase the cost much;

♥ 2) Battery service life is 3-5 years, you will pay a lot of money to replace the old battery;

♥ 3) Comparing with battery, water tank is a fixed investment & maintenance free.



Solar powered water pump system advantages

♥ No fuel cost - as it uses available free sun light

♥ No electricity required

♥ Long operating life

♥ Highly reliable and durable

♥ Easy to operate and maintain

♥ Eco-friendly

·PLC control


·♥ MPPT Technology

·♥ Zero Maintenance

·♥ Continuous Water Supply for 8-10 hours / Day

·♥ Long life up to 25 Years

·♥ Compact Design & High Efficiency

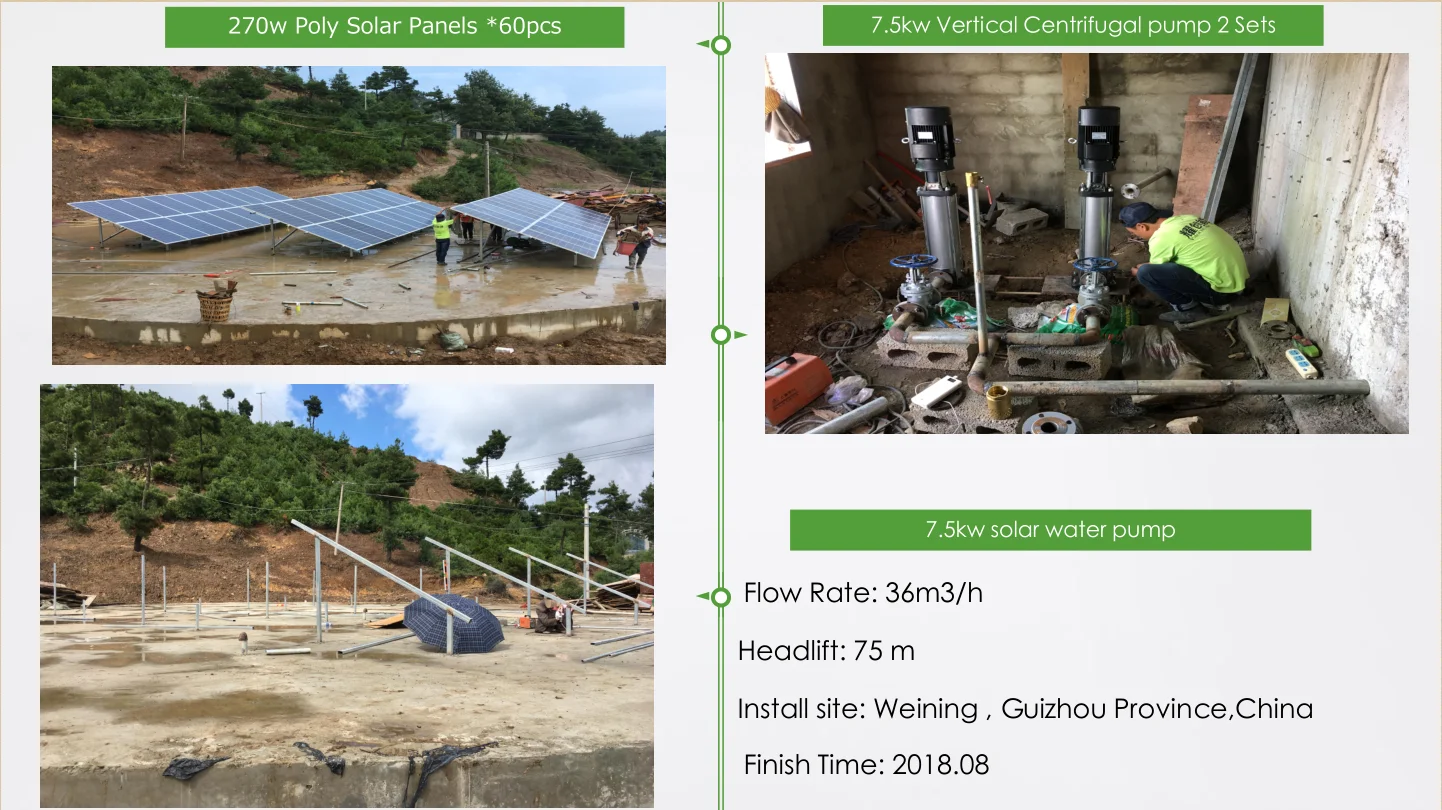

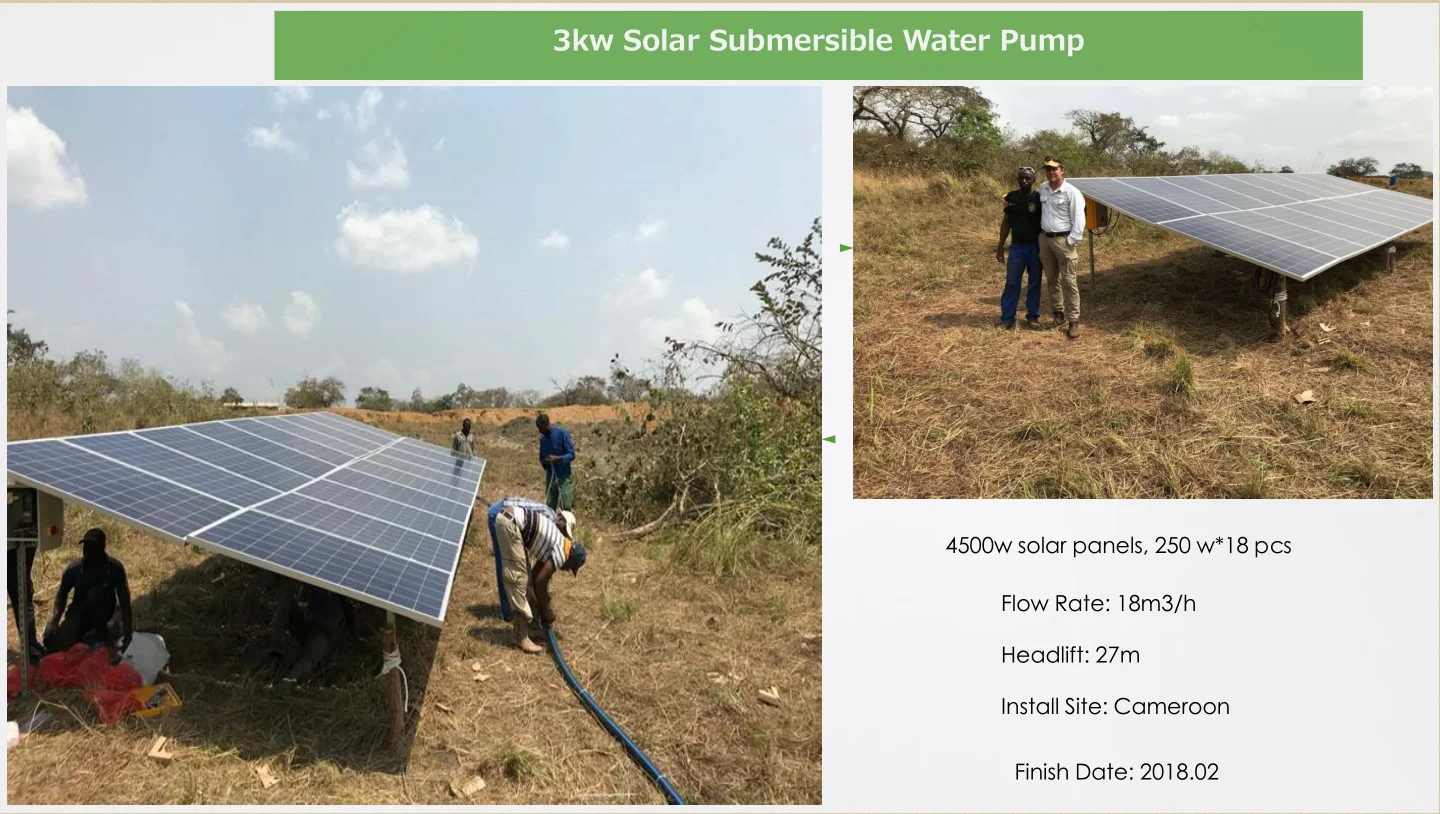

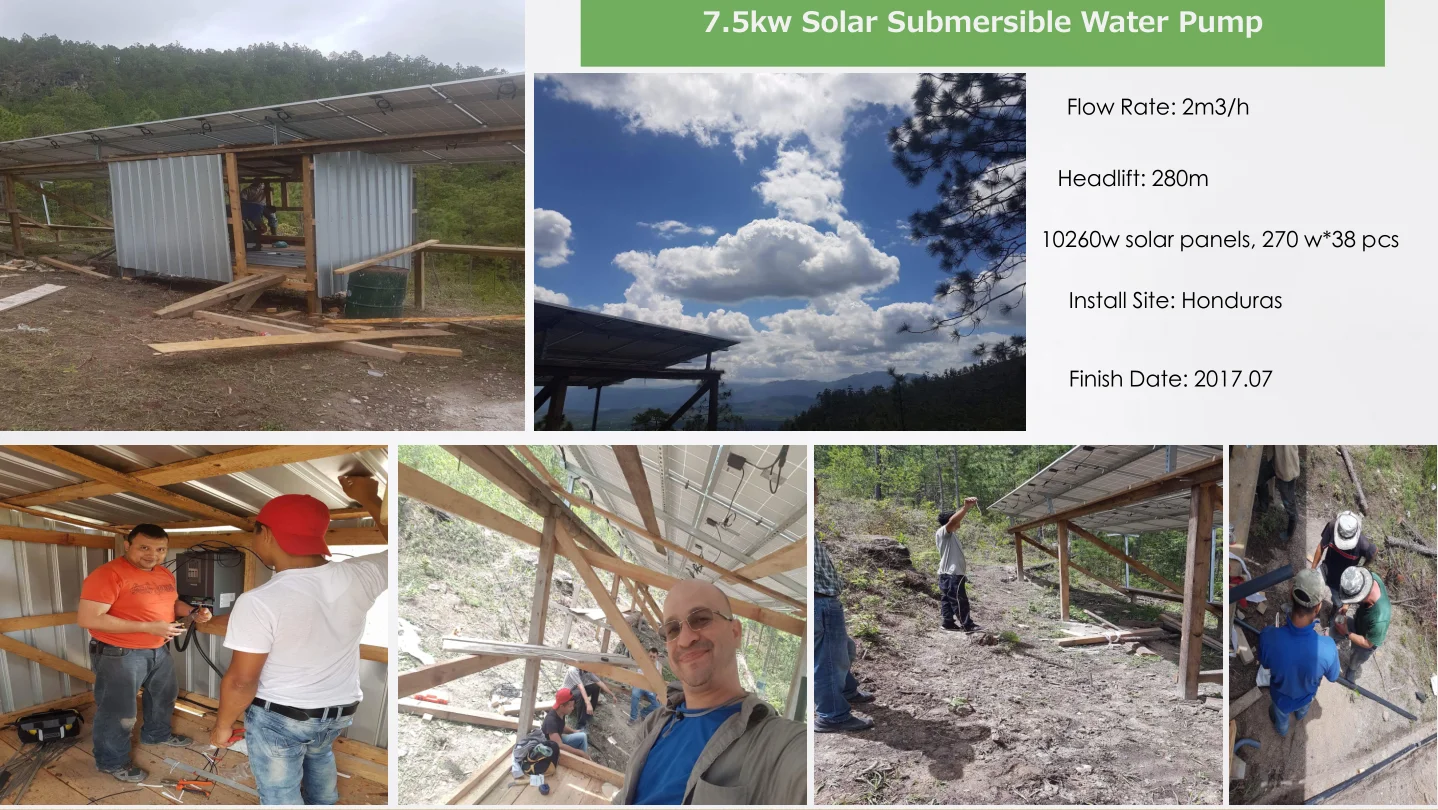

Project show
Our Service

Quality ahead, credit standing paramountcy, user first, service the supreme is our tenet.


Pre-sale service:

1. Free of making offers, craft and technical guidance timely.

2. We can also make customized products according to your needs.


After-sale service:

1. We provide long-term after-sale service.

2. Just call or email to consult any relevant questions since we have a special line of aftersale service which will be available all day,or you can communicate online with our foreign sales and solve the problems.

3. We will send many new styles every week to our old customers.

Any doubt or want to know further about solar products,please feel free to contact us or send me inquiry .

We provide customized service for solar water pump system!
