Based on your requirments of head lift and flow rate to choose suitable solar submersible water pump.
SJ Series full stainless steel solar water pump for irrigation / Solar submersible water pump
Yaochuang Energy is a professional solar water pump system and solar off/on grid system integrator and solution provider. Our factory supplys high quality solar panels A grade and Mppt inverter with CE TUV ROHS certificates. Our systems have been exported to Africa, Middle East, South East Asia, Canada, Austalia, South America, and there are many goodfeedback about our systems. Our solar water pump can reach 500 Meters head lift and 500m3 water per hour.

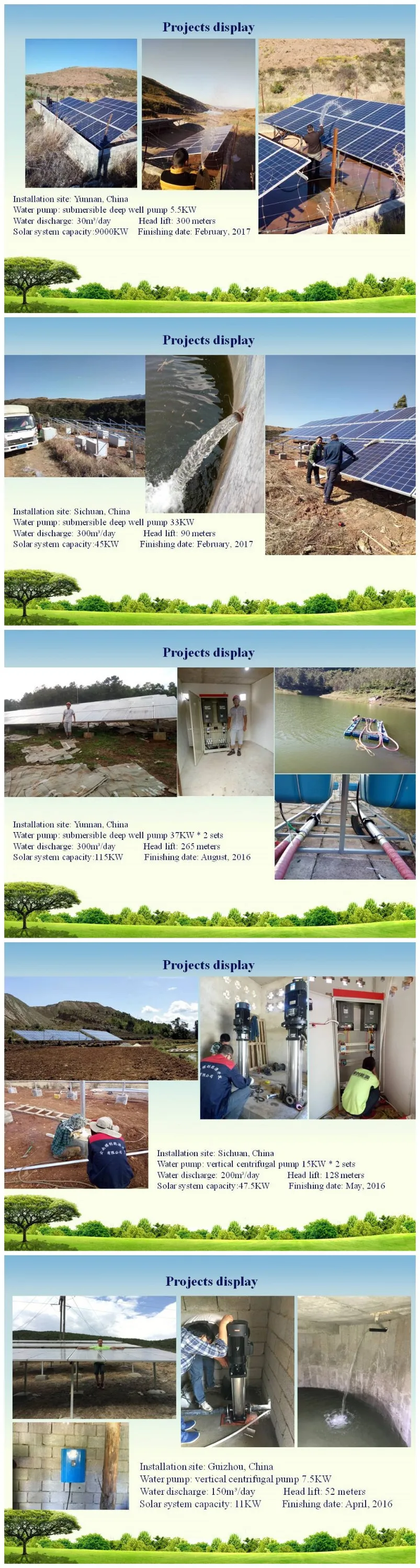

Our Practice is our best advantage

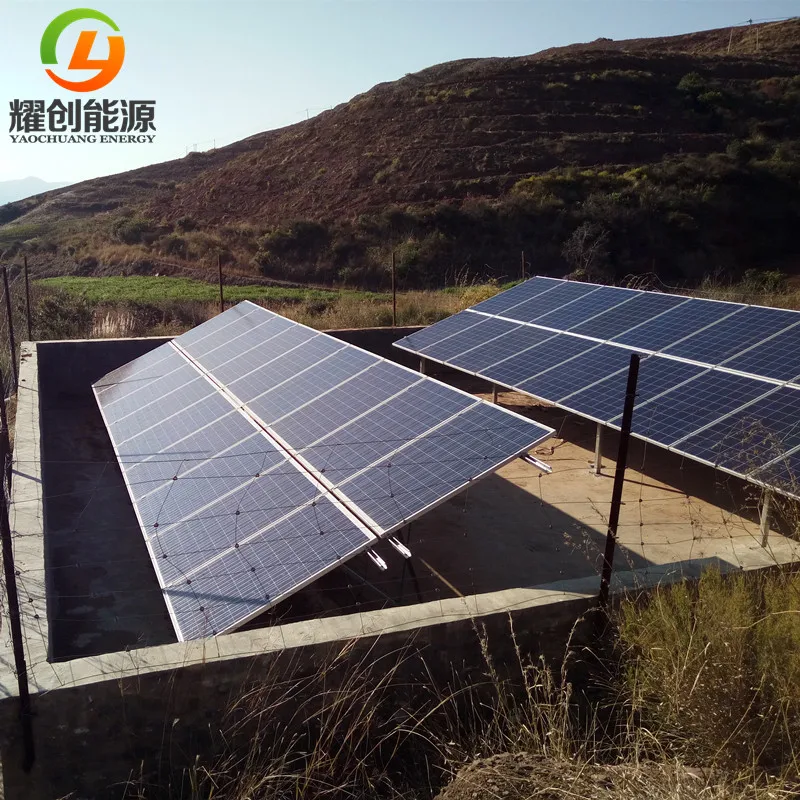

High quality PV solar panels for solar submersible water pump
Flotation system (used in Tank)
MPPT inverter (DC to AC converter)
10hp solar water pump system installation diagram
1.What is solar pumping system? The solar pumping system is composed of solar pumping inverter, 3 phase AC pump, and solar array. The solar array is composed of many solar cells panels in series and in parallel, and absorbs irradiation from Sunlight, and converts into electrical energy (DC). Inverter controls and regulates pumping operation system and converts DC voltage from PV modules to AC to drive the AC pump, with the function of MPPT and it regulates the output frequency according to irradiation in actual time to achieve the maximum power. The AC pump driven by a 3 phase induction motor, draws water from well or rivers and lakes, then water reserved on tank/ponds for irrigation systems or other applications. Based on the requirements and installation conditions, different types of pumps will be required. The solar pumping system is widely used for sea water desalination system, desert controlling, daily life water supplying, agricultural irrigation, forest irrigation, waterscape, and water treatment project. The YCsolar solar pumping system is dispensed with battery and that enhance the reliability of the system and reduce the bill invest.
2.Why cubic meters/day not cubic meters/hour for measuring the solar pumping system? The YCsolar solar pumping dedicated inverter is adopted to achieve MPPT (Maximum Power Point Tracking) to regulate the speed of the pump, and the water output changes while the sunshine radiation changes, so, cubic meters/day is the only standard measurement of the water output of a solar pumping system.
3.How long will the photovoltaic system serve? The solar PV module is with 25 years of using life, and the output power will get lower as the time past.
