Daily water discharge 220 cubic meter at 90 m head 15KW solar power water pump system for agriculture irrigation

FOB Reference Price:Get Latest Price
US $500-15,000 / Sets | 1 Set/Sets (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Shanghai, China (Mainland)
Brand Name:
Yaochuang Energy
Model Number:
solar water discharge system
Specification:
Normal
Application:
Commercial
Output Voltage (V):
380V / 400V / 440V 3 phase
Load Power (W):
15KW
Solar Power (W):
24KW
Work Time (h):
24 hours
System:
solar water pump for irrigation
Usage:
submersible for deep well & borehole
Material:
SS 304 water pump
Warranty:
1-10 years
Service life:
25 years
PV array:
255Wp * 95pcs
Inverter:
DC to AC solar pump inverter
Certificate:
TUV CE RoHS ISO
Pump type:
agriculture solar pump 15kw
Accessories:
cables, bracket, MC4 connector
Supply Ability
Supply Ability:
1000 Set/Sets per Day
Packaging & Delivery
Packaging Details
Standard export package by carton & wooden box for solar power pump system
Port
Shanghai, Ningbo
Lead Time :
10 business days

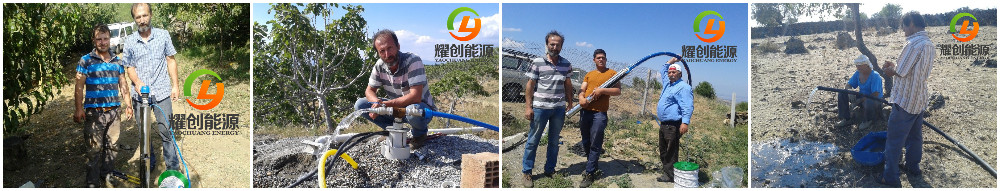

turkey case 1.1kw



Daily water discharge 220 cubic meter at 90 m head 15KW solar power water pump system for agriculture irrigation



  • Solar panel PV module 10 years repair warranty, and 25 years 80% output power promise
  • Solar pump inverter & water pump 1 year warranty
  • Mounting bracket 10 years warranty
  • Others accessories 1-5 years warranty
  • TUV & RoHS & CE certificate high quality solar water pump system

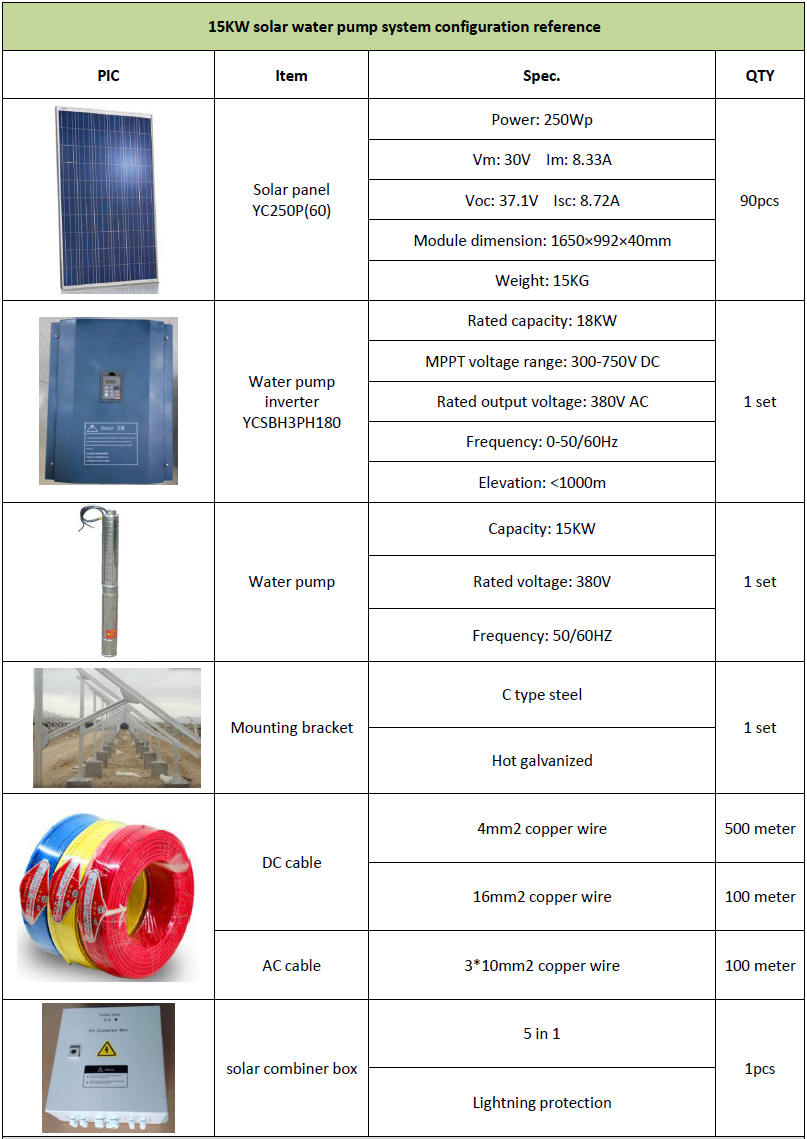

15KW solar water pump system

ModelMotor powerFlow rate(m3/h) / Head lift(m)Outlet (inch)Pump Diameter (mm)
SJ17-2615KW8m3/h/256m12m3/h/238m17m3/h/189m22m3/h/122m2.5"133mm
SJ30-1715KW12m3/h/179m20m3/h/158m30m3/h/125m38m3/h/77m3"133mm
SJ42-1015KW20m3/h/122m30m3/h/108m42m3/h/89m60m3/h/45m3"150mm
SJ60-9-215KW30m3/h/102m50m3/h/77m60m3/h/64m75m3/h/36m4"150mm
SJ75-415KW50m3/h/66.5m70m3/h/55.5m80m3/h/48m100m3/h/30m5"197mm
SJ120-2-215KW80m3/h/32m100m3/h/29m120m3/h/27.5m150m3/h/24m6"230mm



15KW solar water pump system.png





18.5KW (25HP) submersible deep well solar water pump system for agriculture irrigation

ModelMotor powerFlow rate(m3/h) / Head lift(m)Outlet (inch)Pump Diameter (mm)
SJ30-2118.5KW12m3/h/221m20m3/h/196m30m3/h/155m38m3/h/95m3"133mm
SJ42-1218.5KW20m3/h/146m40m3/h/112m50m3/h/87m60m3/h/54m3"150mm
SJ60-1018.5KW30m3/h/121m50m3/h/93m60m3/h/77m75m3/h/45m4"150mm
SJ75-518.5KW50m3/h/83m70m3/h/70m90m3/h/51m100m3/h/38m5"197mm
SJ95-418.5KW60m3/h/65m80m3/h/54m100m3/h/36m120m3/h/10.5m5"197mm
SJ120-2-118.5KW90m3/h/37.5m110m3/h/35.5m130m3/h/32.5m150m3/h/28m6"230mm
SJ150-2-218.5KW100m3/h/32m120m3/h/31m150m3/h/28.5m180m3/h/25m6"230mm



18.5KW solar water pump system





More solar water pump system solution, customized service is available after know requirements as below

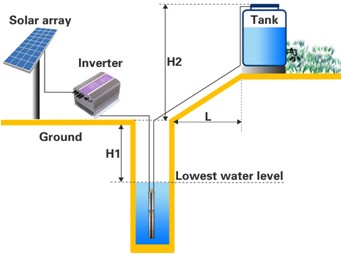

Installation site: Country: ____________ City: ___________
Water source: Borehole (Diameter: _______mm)
Lake, river, reservoir, dam
Average daily water demand: __________ m3
H1 (lift from lowest water level to ground): __________m
H2 (tank height and extra lift if any): ________m
L (Horizontal distance for water transport): _______m

head lift 1





Why cooperate with us?

  • Yaochuang energy produce solar panel & solar pump inverter
  • Professionally integrate whole set solar water pump system, mature solar power system design
  • Rich experience on project installation
  • Thorough after sale service
  • Oversea sale team makes cooperation more convinient

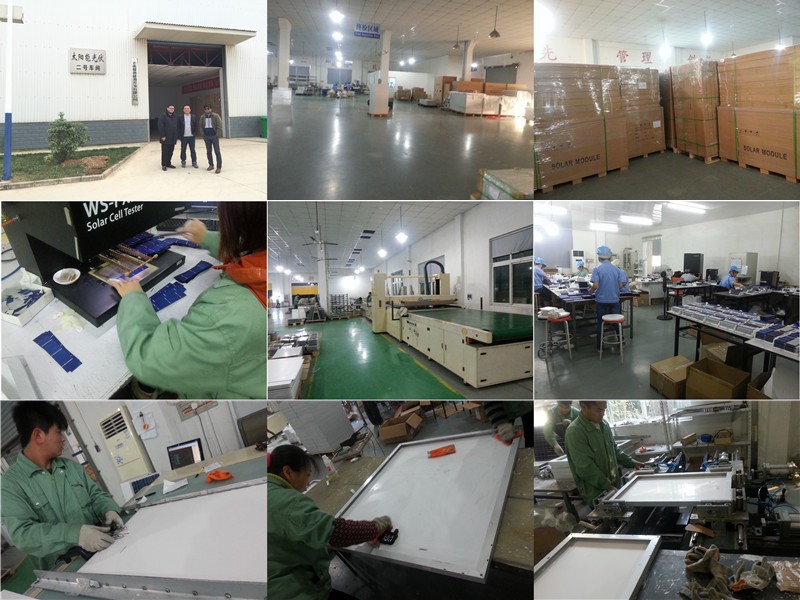

factory

solar water pump system 137solar water pump 5solar water pump 7solar water pump 16



Yaochuang team
