7 inch stainless steel submersible pump top selling solar products in China

FOB Reference Price:Get Latest Price
  • 1 - 19 Sets
    US $900.00
  • >=20 Sets
    US $400.00
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Shanghai, China (Mainland)
Brand Name:
Yaochuang
Model Number:
YC
Theory:
Mixed Flow Pump
Structure:
Screw Pump
Usage:
Water
Power:
0.37KW-110KW
Standard or Nonstandard:
Standard
Fuel:
solar energy
Pressure:
High Pressure
Application:
solar pump for irrigation, irrigation/home
Product name:
Solar Submersible Water Pump
Material:
Stainless Steel
Voltage:
220V/380V
Warranty:
1-10years
Flow rate:
31 - 200 L/M
Feature:
High Efficiency
Impeller:
Stainless Steel Material
Model:
Multistage submersible pumps
Solar panel:
polycriystalline
Supply Ability
Supply Ability:
500 Set/Sets per Month
Packaging & Delivery
Packaging Details
Standard package
Solar panel, solar pump inverter, solar water pump in carton/wooden box
Port
Shanghai
Lead Time :
Quantity(Sets) 1 - 1 >1
Est. Time(day) 7 To be negotiated

7 inch stainless steel submersible pump top selling solar products in China



Product Description

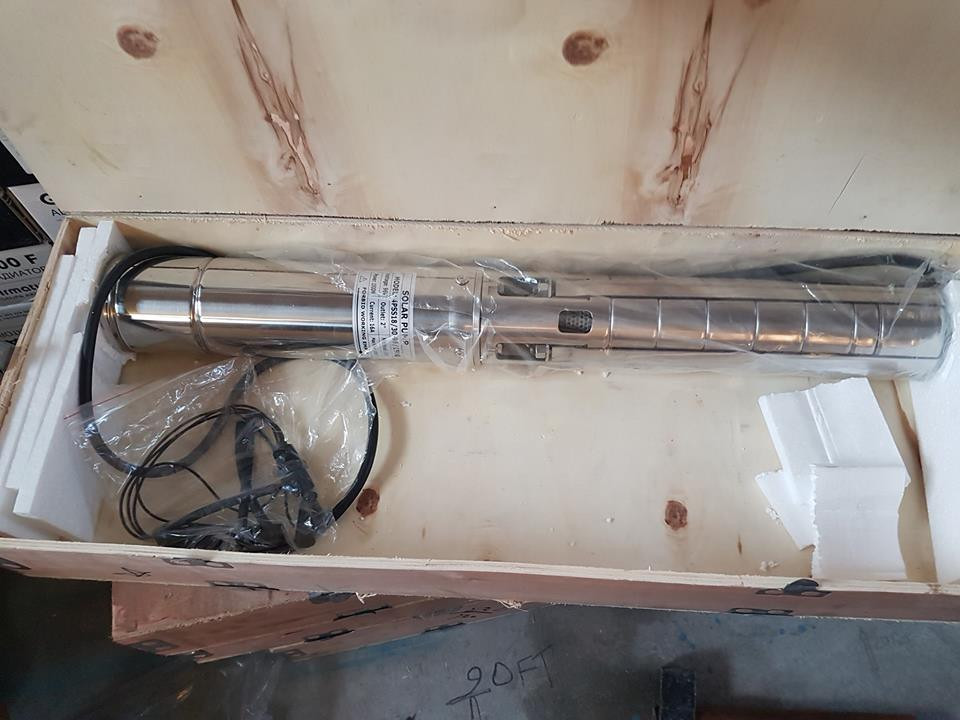

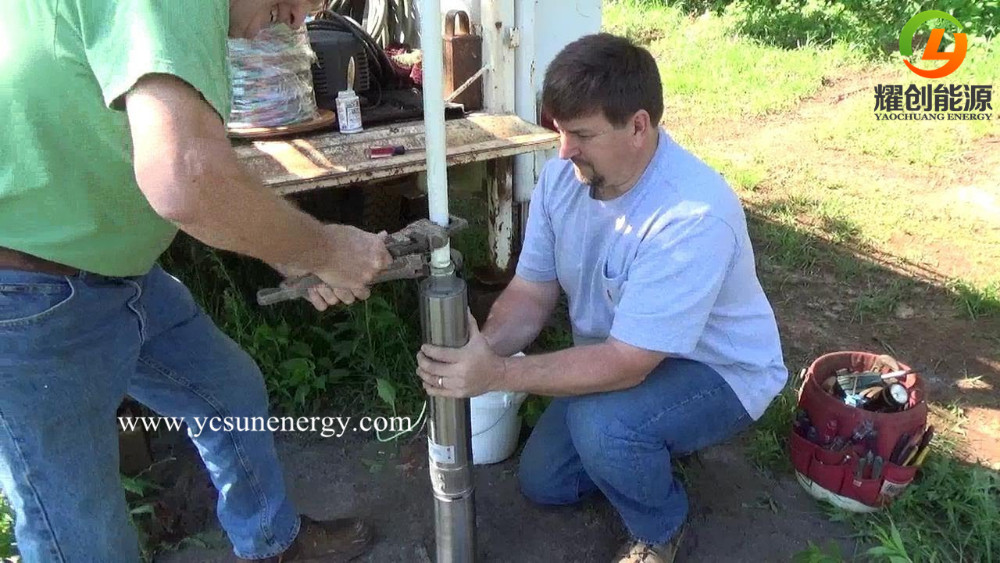

13692739_1096619237087914_8677890301329983980_n (2).jpg

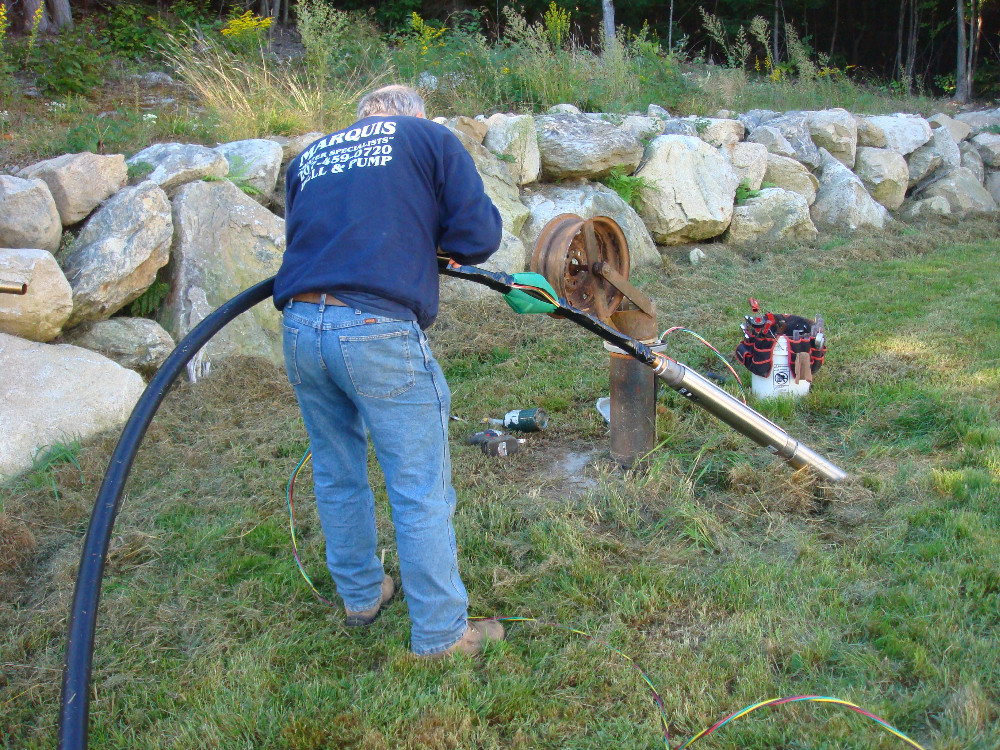

13707638_1096619300421241_7617330639314682414_n.jpg13718661_1096619397087898_2503054643862569610_n.jpg



specification

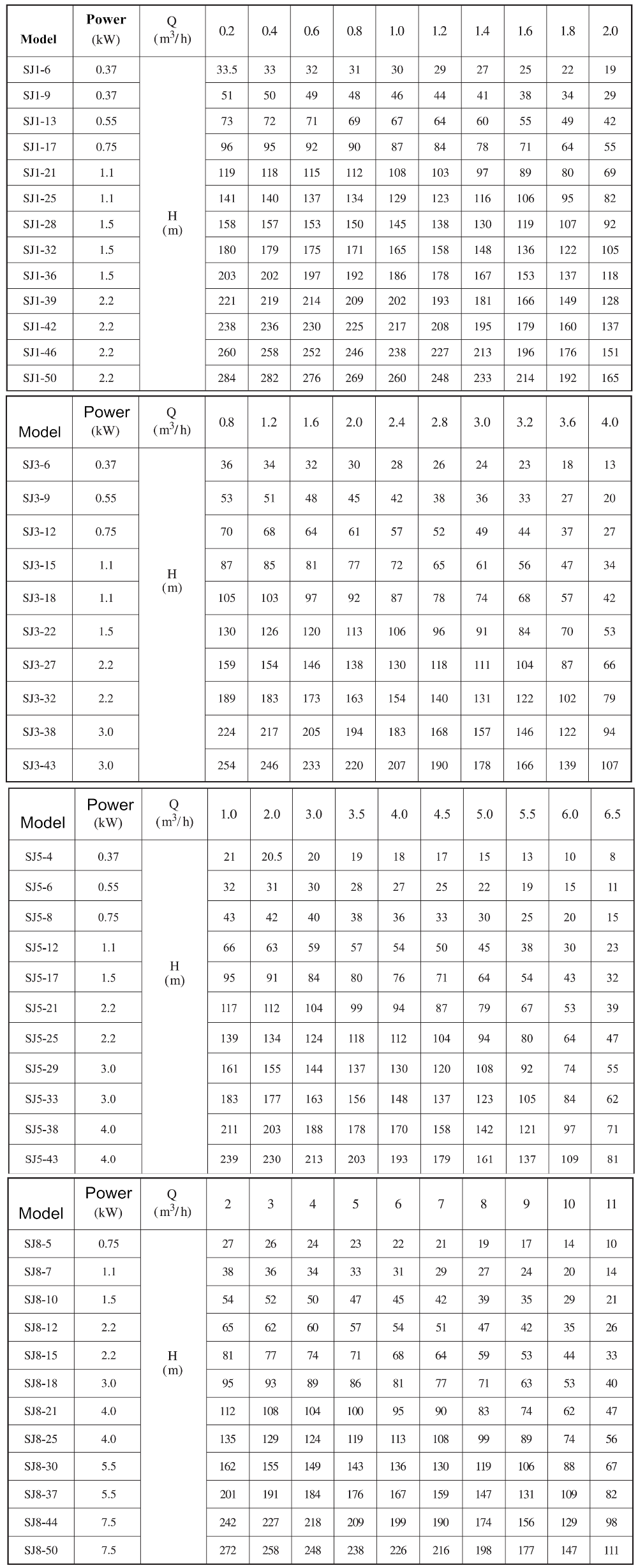

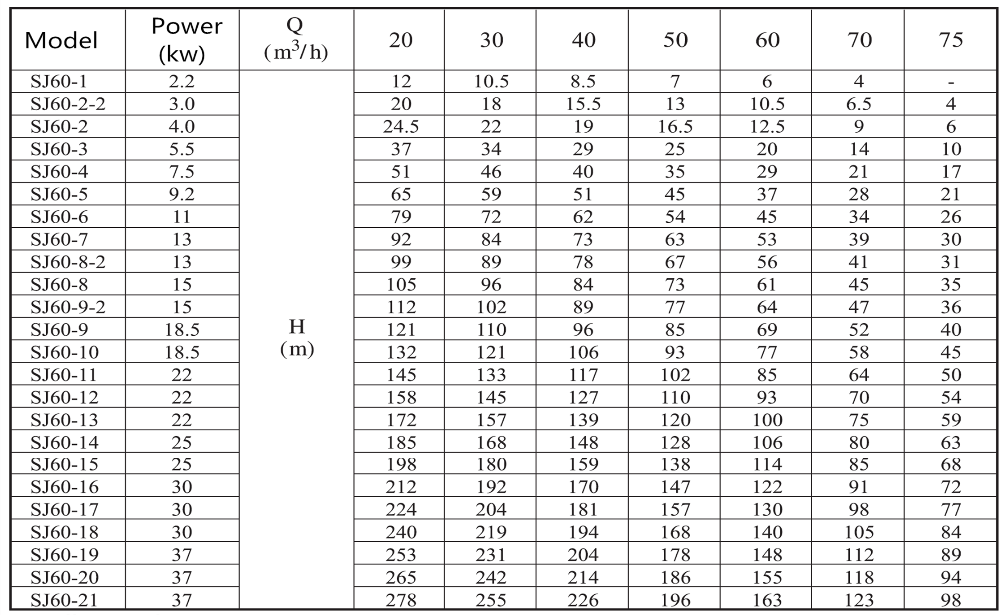

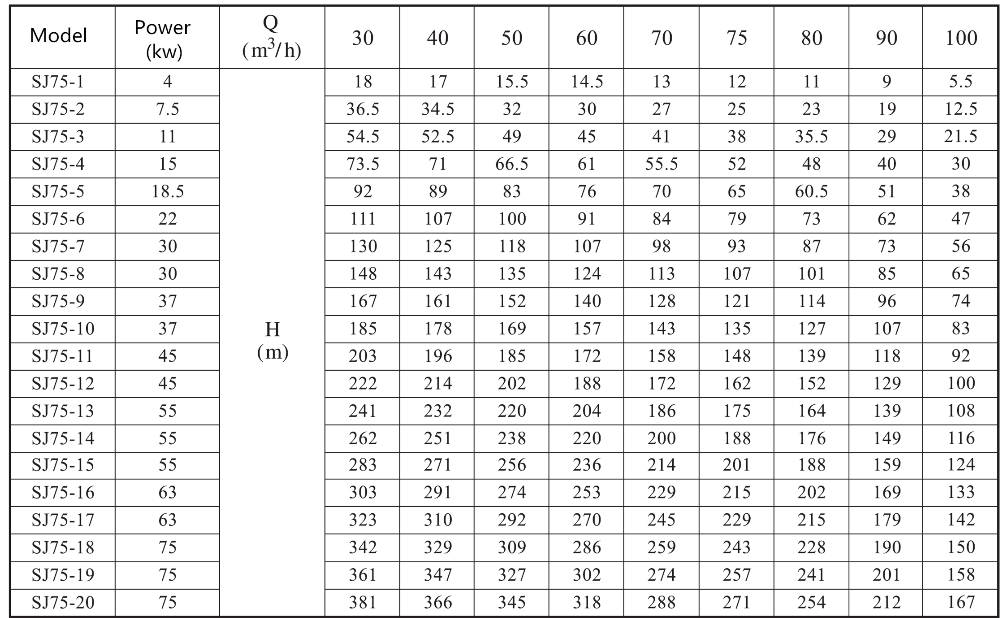

Parameter of submersible solar water pump

Based on your demand of head lift and flow rate, choose suitable water pump.

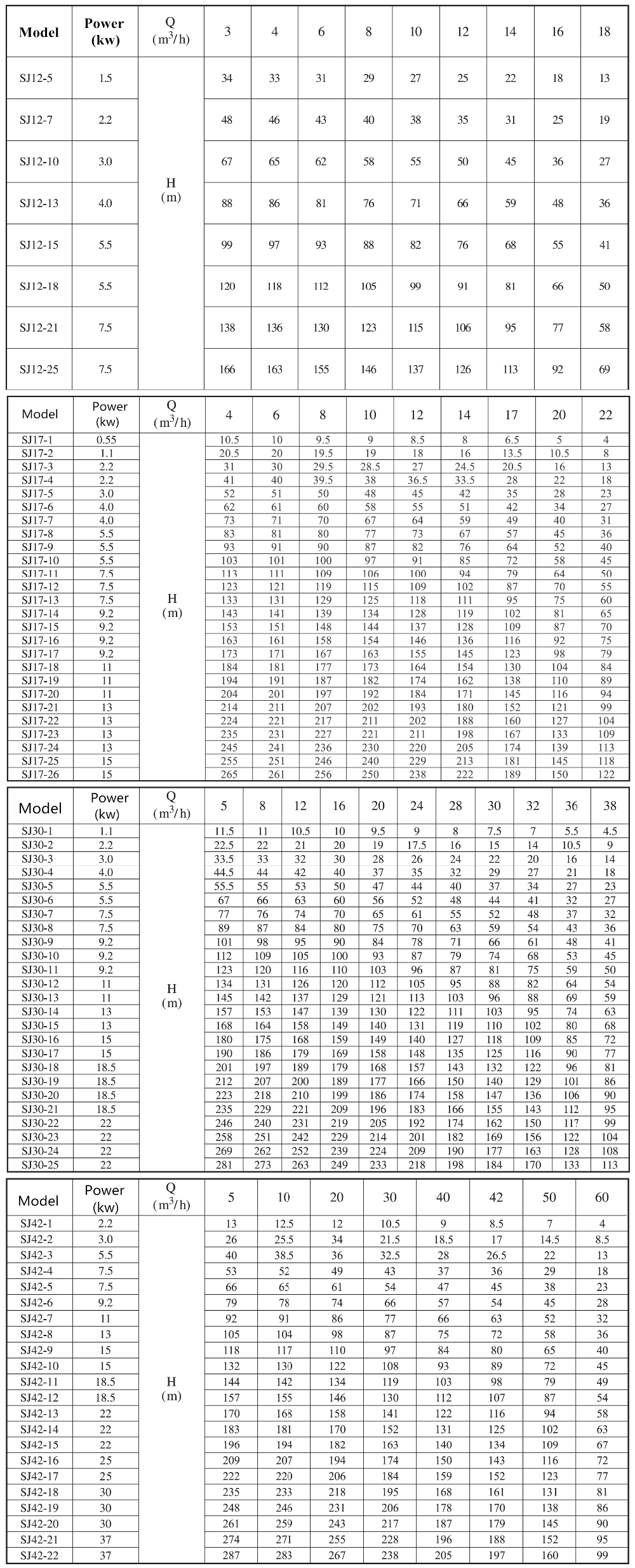

sj1-sj8 parameters.png






1.What is solar pumping system?
The solar pumping system is composed of solar pumping inverter, 3 phase AC pump, and solar array. The solar array is composed of many solar cells panels in series and in parallel, and absorbs irradiation from Sunlight, and converts into electrical energy (DC). Inverter controls and regulates pumping operation system and converts DC voltage from PV modules to AC to drive the AC pump, with the function of MPPT and it regulates the output frequency according to irradiation in actual time to achieve the maximum power. The AC pump driven by a 3 phase induction motor, draws water from well or rivers and lakes, then water reserved on tank/ponds for irrigation systems or other applications. Based on the requirements and installation conditions, different types of pumps will be required.

The solar pumping system is widely used for sea water desalination system, desert controlling, daily life water supplying, agricultural irrigation, forest irrigation, waterscape, and water treatment project. The YCsolar solar pumping system is dispensed with battery and that enhance the reliability of the system and reduce the bill invest.



2.Why cubic meters/day not cubic meters/hour for measuring the solar pumping system?
The YCsolar solar pumping dedicated inverter is adopted to achieve MPPT (Maximum Power Point Tracking) to regulate the speed of the pump, and the water output changes while the sunshine radiation changes, so, cubic meters/day is the only standard measurement of the water output of a solar pumping system.



3.How long will the photovoltaic system serve?
The solar PV module is with 25 years of using life, and the output power will get lower as the time past.

FAQ

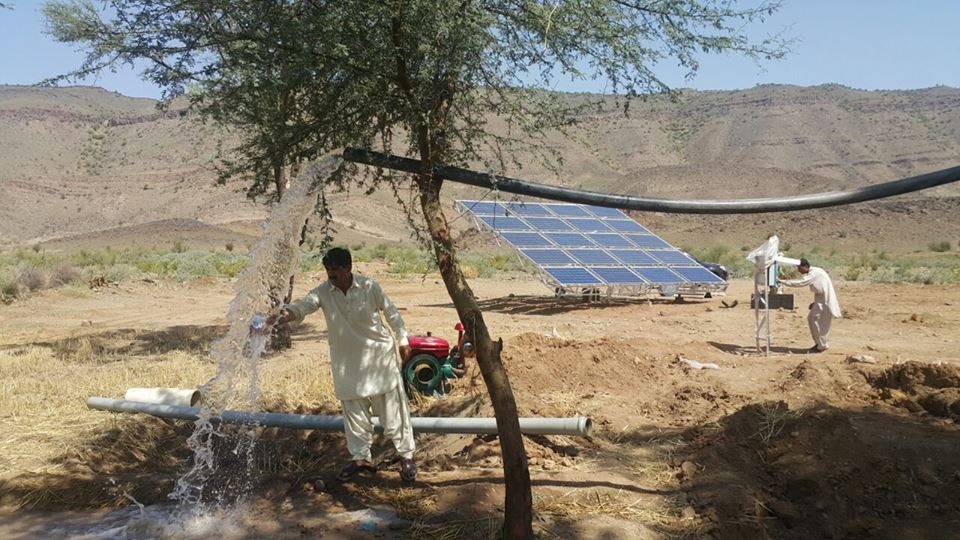

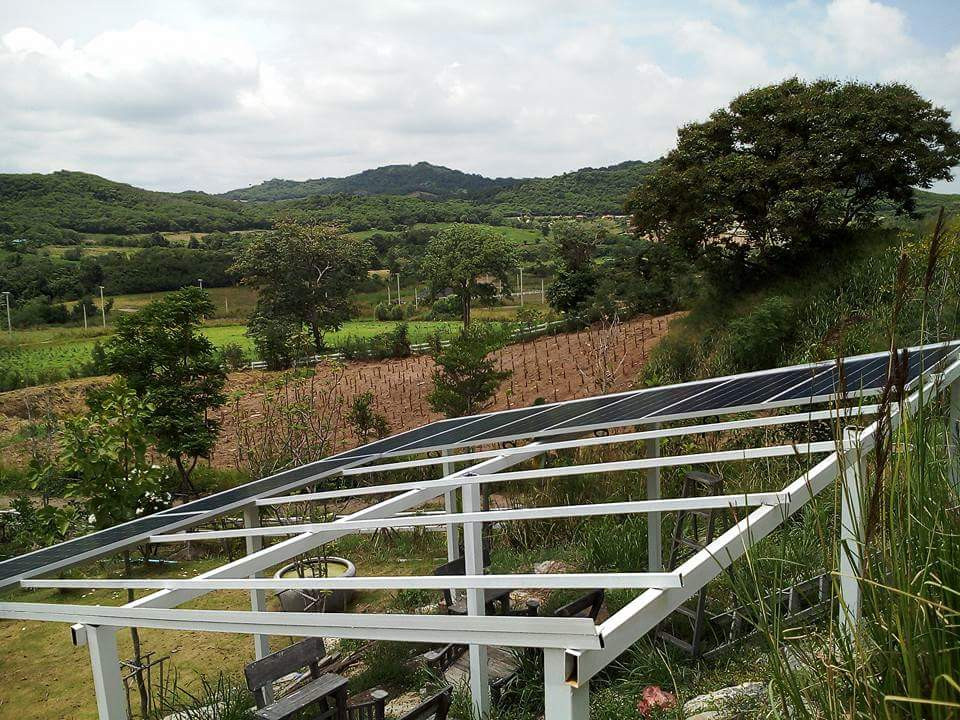

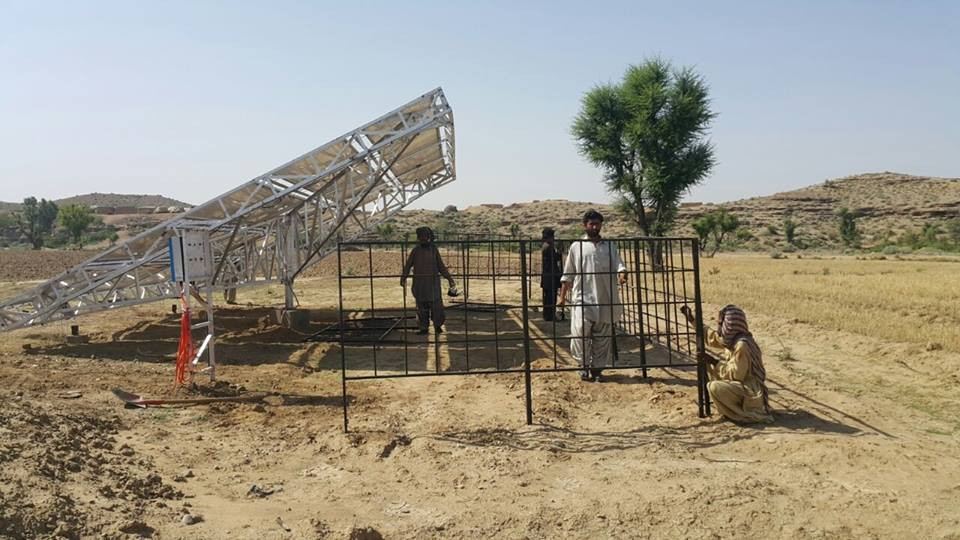

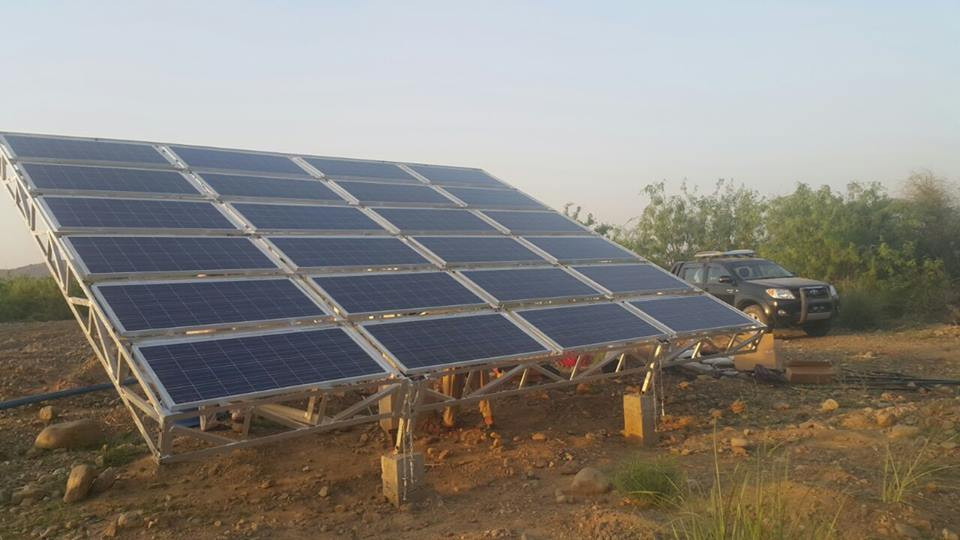

14370145_1270372562982439_2566019477662973948_n.jpg14390991_10157452315170472_3833622080893942574_n.jpgmaxresdefault_.jpgmedia4.JPG
