water pump, light, TV, refrigerator, air conditioner,
Hybrid solar inverter
10000 Set/Sets per Month
Packaging & Delivery
Standard export package for tube well pump
15 business days
4 inch 6inch 8inches Solar tube well submersible water pump system

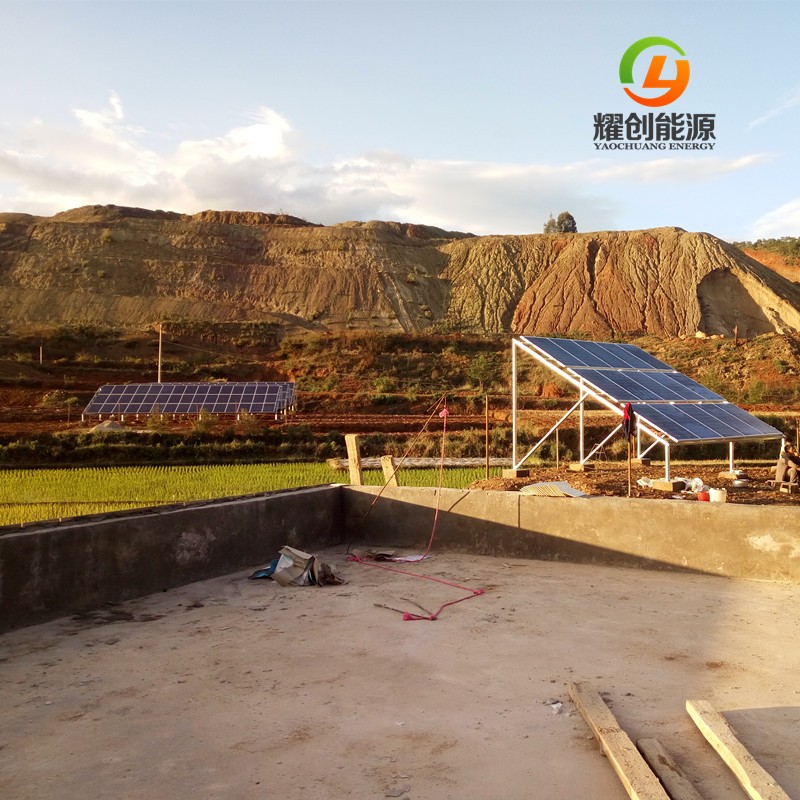

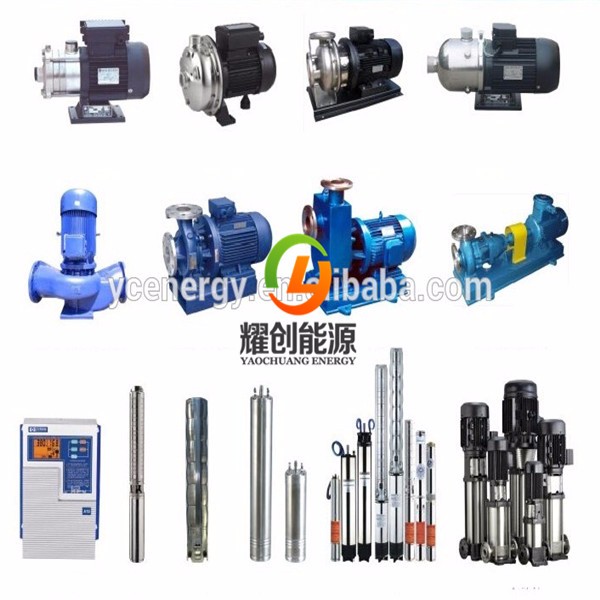

Why choose cooperate with YAOCHUANG ENERGY? 1.YAOCHUANG ENERGY works on solar power system over 10 years begin with some engineers. 2.Important equipments of system are solar panel & solar pump inverter & water pump, solar panel & pump inverter are manufactured by ourselves, water pumps are from cooperated factory, and some famous brand pumps. 3.Rich experience on design, and installation, full service. We are not only solar energy products producer, but also solar power system integrator & installer that cooperate with government. 4.Hundreds projects in Africa, southeast Asia, and the Middle East, praised quality & service, positive feedback. 5.Whole set system 1 year warranty, solar panel 10 years warranty, solar pump inverter & water pump 1 year warranty, lead acid solar battery 2 years warranty.
6.Commissioning and installation service is available all over the world.
Submersible deep well water pump is the most common used type for agriculture irrigation

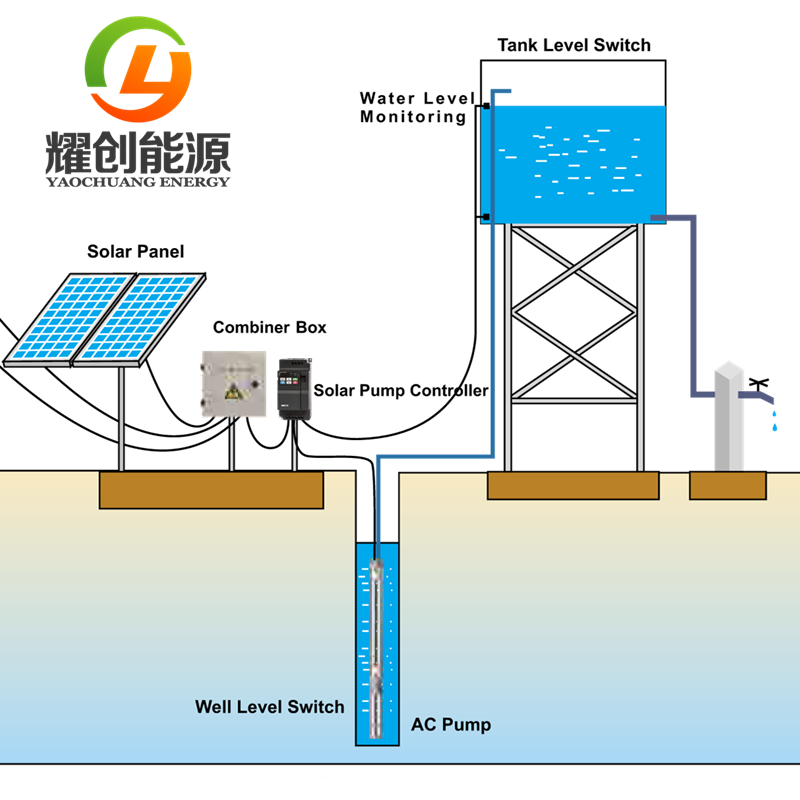

Solar water pump system advantages: high MPPT efficiency function, GMS remote control, auxiliary diesel power/3 phase AC electricity hybrid power transfer-switch controller, water flow control regulator, soft start/stop

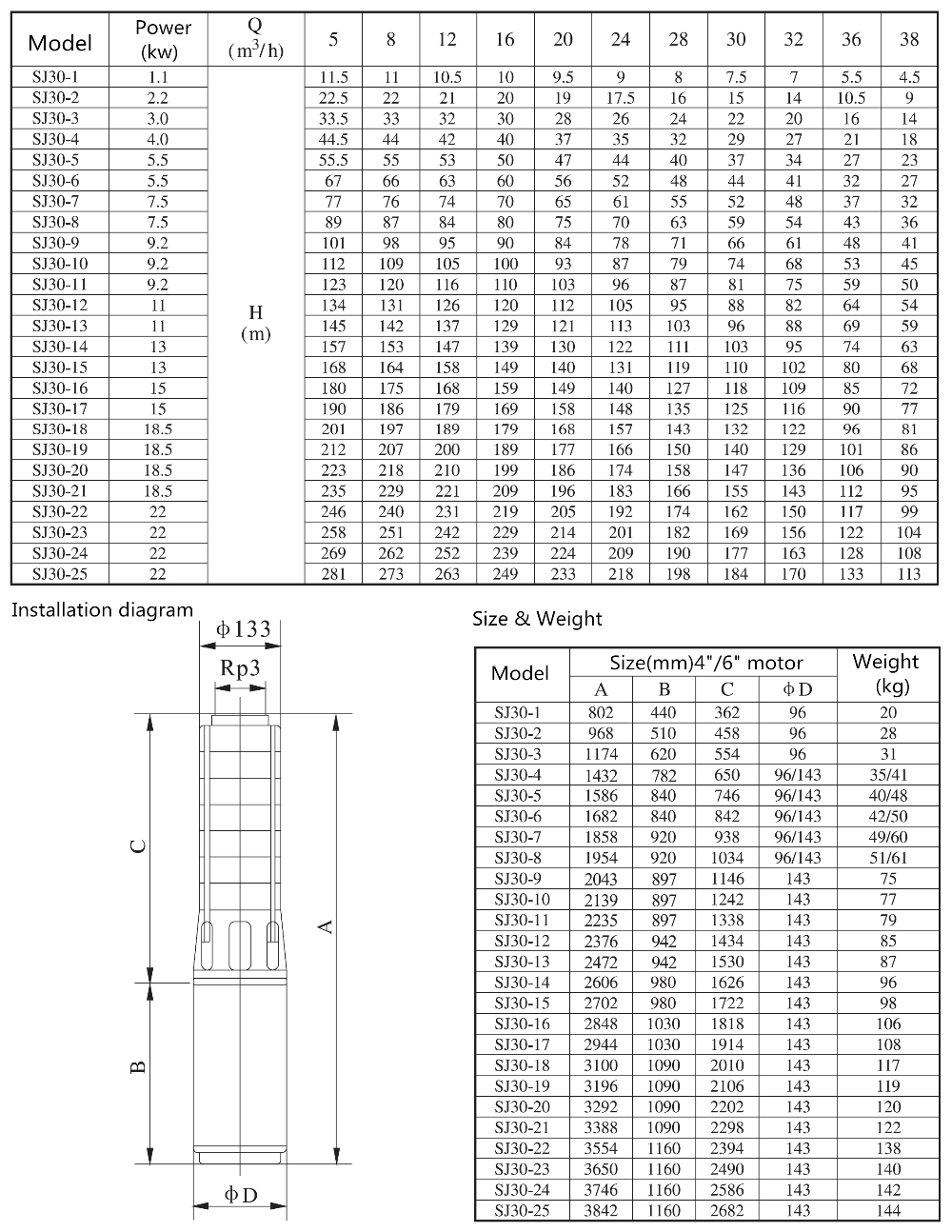

AC water pump:Upper guide bearing, thrust bearing base: cast iron, or stainless steel Power: 18.5kW Voltage: 3-phase 380V AC, 50Hz Type: multi-stage centrifugal submersible pump Series: water cooling and reinforced motor for solar power Max flow: 180m3/hr Max head: 340m Inlet: 6" Outlet: 3/4/5/6" NEMA standard: 143mm/144mm 304 stainless steel materials for: Water outlet Impeller Pump body Motor casing Motor shaft Screw

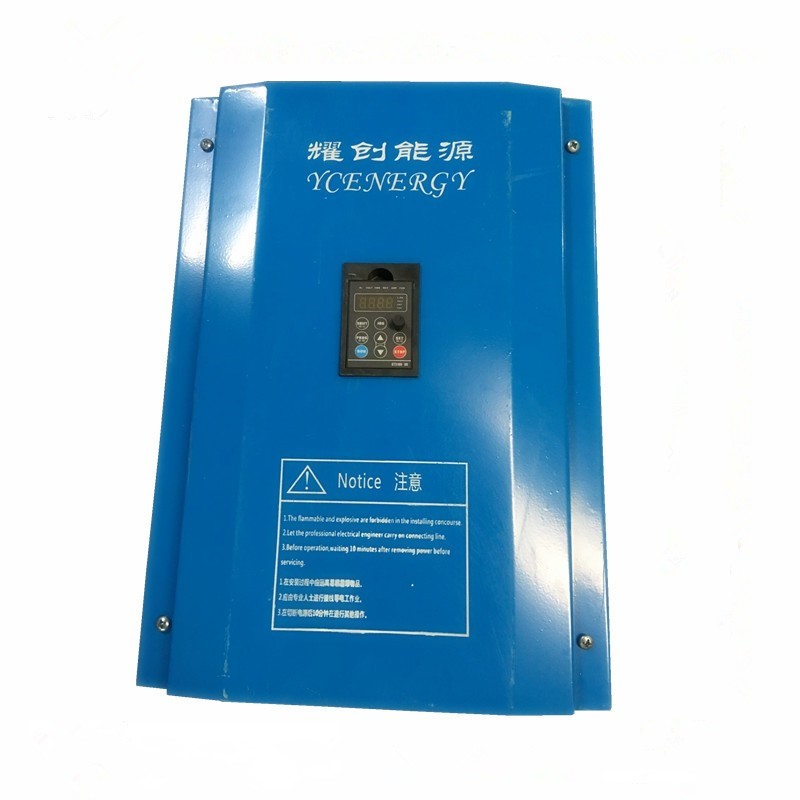

Water quality: sand content (weight ratio) in water should not exceed 0.01%, chlorine content should not be over 400mg/L Max average daily water supply: 1000m³@5.5KWh/m²/day Warranty: 12 months Advantages: up to 10 years lifetime, working is reliable & stable Controller and inverter: Power: 22kW Input voltages: 560V-600V Output voltage: AC 3-phase 380V MPPT voltages: 300V-750V Max MPPT efficiency: ≥97%, soft start/stop Warranty: 1 year Protection: Over-current/over-voltage/over-speed/over-temperature Reverse polarity Dry water/phase failure protection Panel reference: Power: mono/poly, totally about 28kW Positive tolerance: +0/5W Products warranty: 10yrs Performance warranty: 90%/10yrs, 80%/25yrs
Mounting system: Type: fixed mode/pillar manual tracking/slanting uniaxial tracking Foundation: concrete pouring Installation type: 6pcs/array and vertical Warranty: 5yrs Material: hot-dip galvanized Combiner box:Accessories: PV cables, water pump cables, water level detective sensor, cable sleeves, pipeline, flange, riser pipe Type of model: SH10-6A PV array input path: 6 channels Maximum current of each PV array/string(A): DC 12A Maximum system voltage: DC 1000V Anti-reserve current protection/lightning protection included Protection degree: IP55

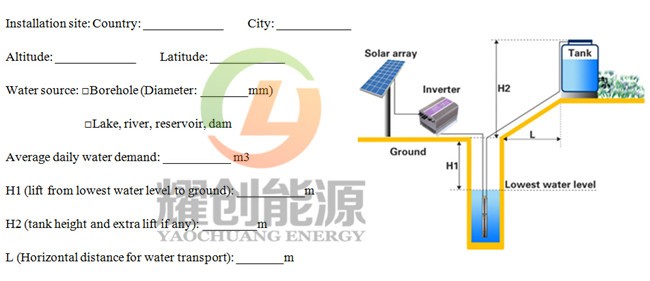

How to establish business with us? 1.Contacting us via email or trademanager, tell us what products or system you need, and your requirements 2.Specification & price will be sent to you within 12 hours after getting your inquiry (except for holidays) 3.Adjusting design and price according to your budget until you accept it 4.Preparing products within 5 days once deposit is arrived, and ship out parcel after receiving balance payment (please give us some more prepared time for bulk order) 5.Informing you freight information, and offering you bill of loading 6.Guiding installating after you receive products 7.Giving us feedback, and repeat order
You are welcomed to contact us for more details of hybrid solar power system.
