YaoChuang Energy Solar Pump High Efficiency Solar Pump System Surface Solar Water Pump for irrigation

FOB Reference Price:Get Latest Price
  • >=800 Sets
    US $600.00
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Yunnan, China (Mainland)
Brand Name:
yc solar energy
Model Number:
yaochuang
Theory:
Centrifugal Pump
Structure:
Multistage Pump
Usage:
for desert place which lack of water
Power:
solar power
Standard or Nonstandard:
Standard
Fuel:
solar energy water pump system
Pressure:
High Pressure
Application:
submersible and surface
Material:
poly crystalline with Stainless Steel
Certificate:
CE /TUV/ Rohs
Color:
Silver
Voltage:
220V/380V pump
Product name:
Solar Submersible Water Pump
Type:
DEEP WELL SOLAR WATER PUMP system
Warranty:
pump 1 year solar panel 10 years
Feature:
Eco-Friendly also high efficiency
Model:
yaochuang solar water pump system
Motor:
AC Brushless Motor
Supply Ability
Supply Ability:
1000 Set/Sets per Month
Packaging & Delivery
Packaging Details
carton
Port
ShangHai
Lead Time :
Quantity(Sets) 1 - 1 >1
Est. Time(day) 7 To be negotiated

YaoChuang Energy Solar Pump High Efficiency Solar Pump System Surface Solar Water Pump for irrigation







system requirement:



--solar panel

--inverter

--water pump

-- DC Cable









Theory show



QQ20160425150628





solar water pump system design





5.5KW solar water pump system configuration reference



PIC

Item

Spec.

QTY

Price(usd)



Solar panel           YC250P(60)

Power: 250Wp

36pcs

4585

Vm: 30V    Im: 8.33A

Voc: 37.1V    Isc: 8.72A

Module dimension: 1650×992×40mm

Weight: 15KG



Water pump inverter  YCSBH3PH075

Rated capacity: 7.5KW

1 set

562

MPPT voltage range: 300-750V DC

Rated output voltage: 380V AC

Frequency: 0-50/60Hz

Elevation: <1000m

Water pump

Capacity: 5.5KW

1 set



Rated voltage: 380V

Frequency: 50/60HZ

Mounting bracket

C type steel

1 set

852

Hot galvanized

DC cable

4mm2 copper wire

200 meter

150

AC cable

3*6mm2 copper wire

100 meter

155

FOB shanghai 5400-6200usd/set according to configuration difference.



Total volume: 3.8CBM     Total weight: 710KG



Installation area: 90-100 square meter



















factory show



workshop

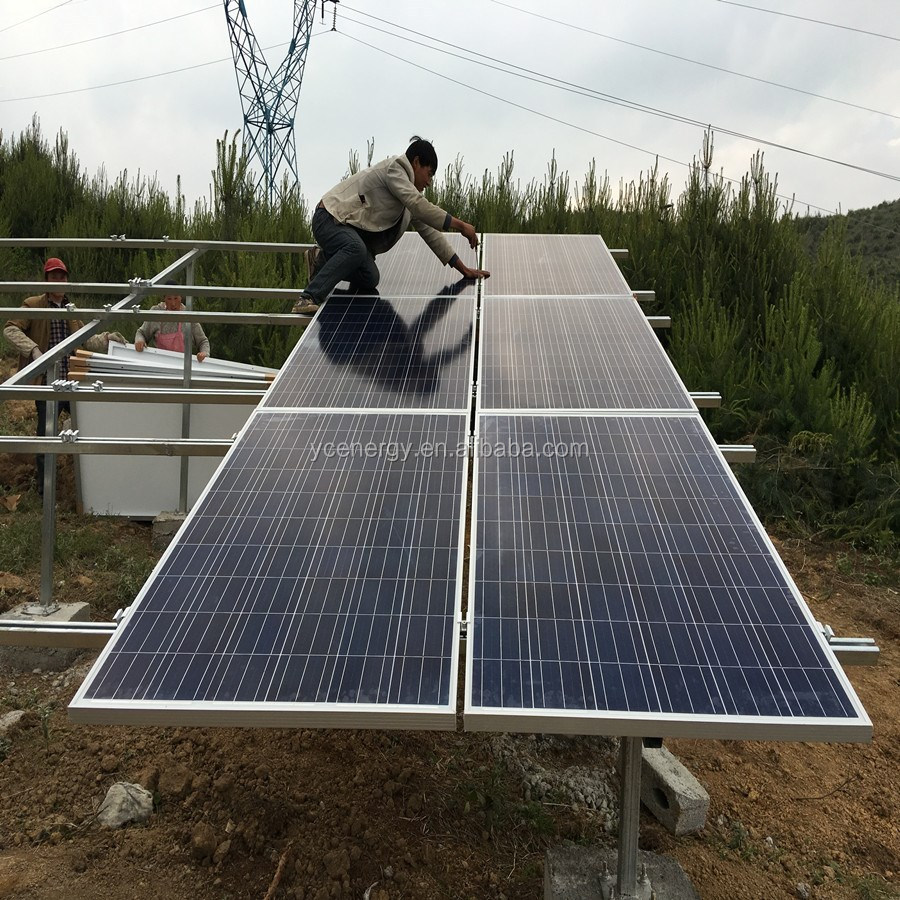

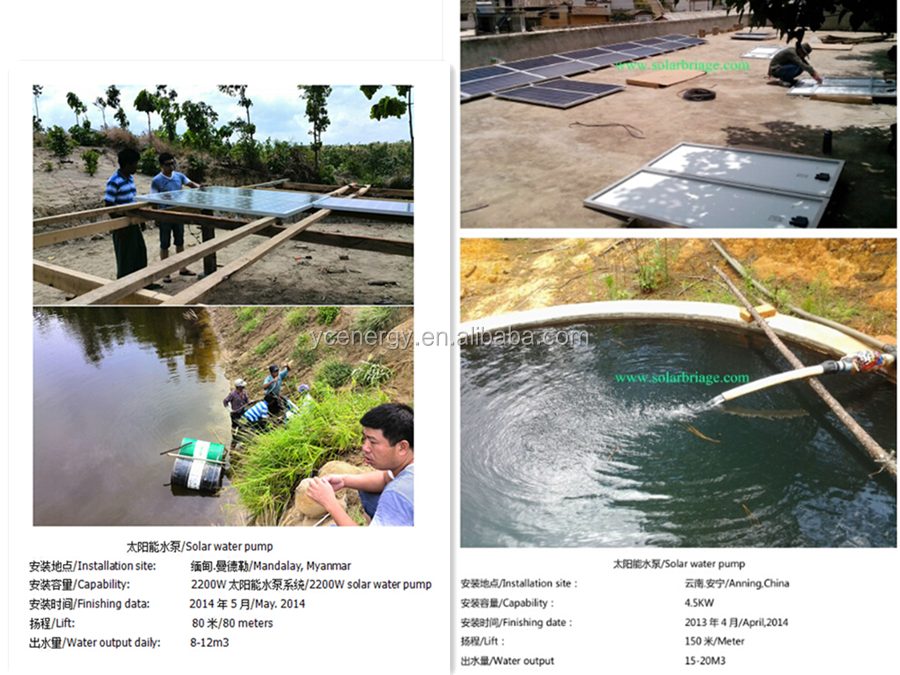

case show



initpintu_





IMG_1481_

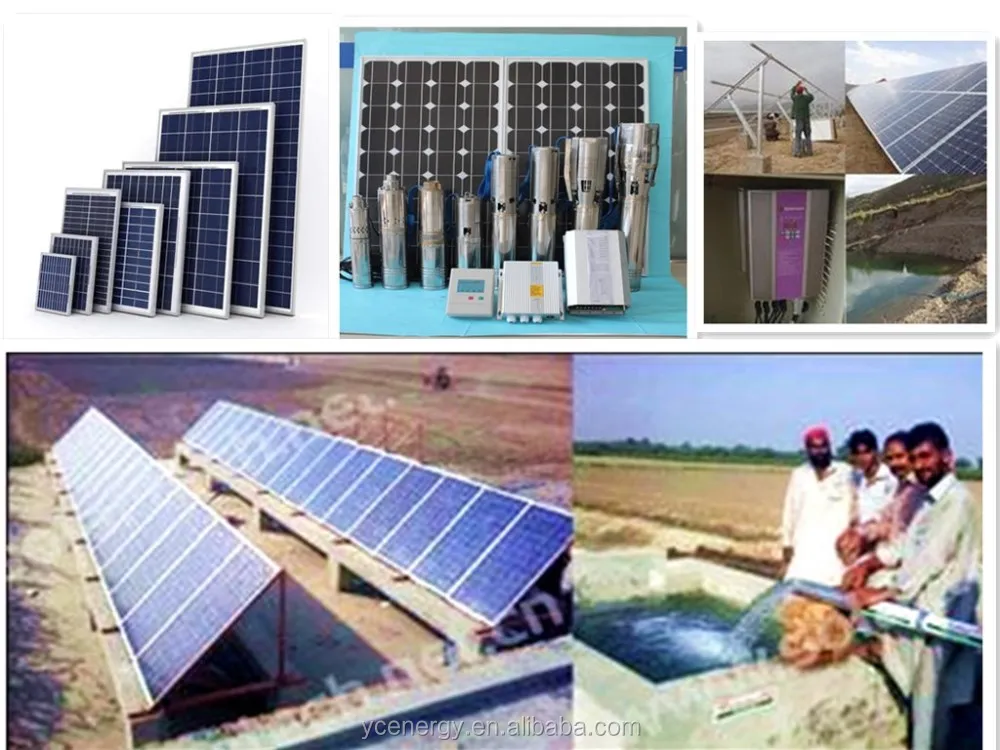

solar water pump hot sale

















contact
