automatic ac dc solar water pump with tuv ce quality

FOB Reference Price:Get Latest Price
  • >=1 Sets
    US $500.00
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Yunan China
Brand Name:
Yaochuang
Model Number:
YC
Theory:
deep well pump
Structure:
Screw Pump
Usage:
Water
Power:
Electric
Standard or Nonstandard:
Standard
Fuel:
solar power
Pressure:
High presssure
Application:
Submersible
Material:
Stainless Steel
Product name:
automatic ac dc solar water pump with tuv ce quality
Head:
180-171-150-144-126-90
Flow rate:
1-1.5-2-2.5-3-4
Motor:
submersible motor
Warranty:
1 Year
Service:
private label / OEM
Borehole diameter:
4" 6"
Temperature:
35°
Voltage:
220V/380V/440V
Supply Ability
Supply Ability:
1000 Set/Sets per Month
Packaging & Delivery
Packaging Details
1. Water Pump*1pc
2. Cable for Water Pump*1 roll (100m)
3. Solar Panel for water pump
4. Solar Pumping Inverter *1pc
5.cable for water level sensor*1roll (100m)
6.cable for water tower water level sensor *50meters
Port
ShangHai
Lead Time :
Quantity(Sets) 1 - 1 >1
Est. Time(day) 7 To be negotiated

DC Solar Water Pump :

APPLICATION

It can be used to transfer clean water or other liquids similar to water in physical and chemical properties. It is suitable for small living water supply, automatic water sprinkler system, small air conditioner system or supporting equipment etc.

MOTOR

Maintenance-Free Brushless DC Motor Suitable for 12-48 Volt DC Operation No electronics in the motor Control inputs for well probe,dry running protection,remote control etc. Integrated DSP & MPPT(Maximum Power Point Tracking) Battery Operation,low voltage disconnect for battery system operation Adjustable speed control of motor Protection against reverse polarity,overload and high temperature.

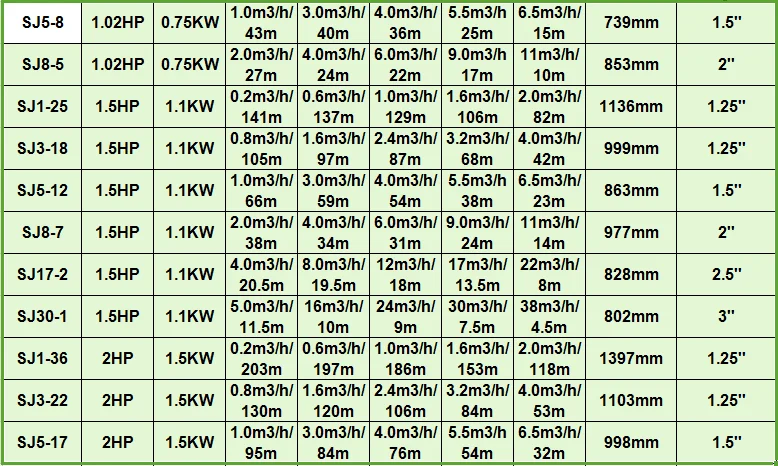

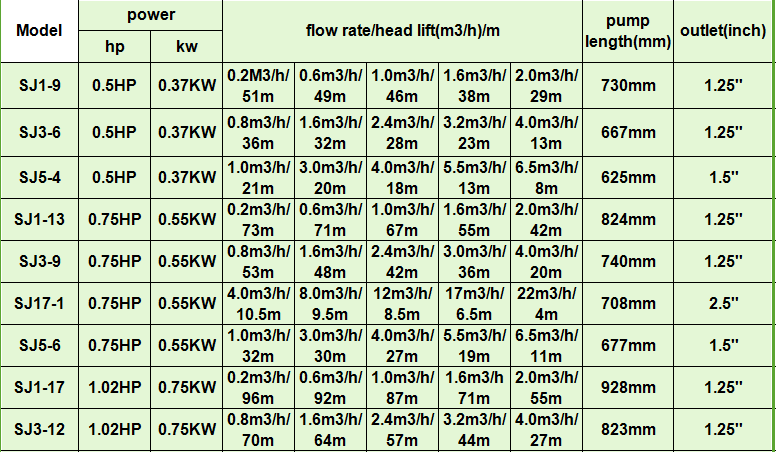

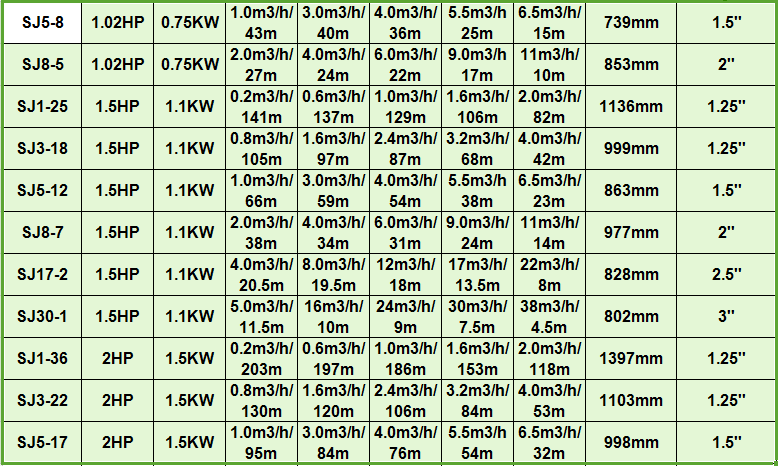

product specification


system configuration



solar water pump type:
SJ 5-12
POWER:1.5HP 1.1KW
Flow/Head: 1m3/h/66m
                    3m3/h/59m
                  5.5m3/h/38m

solan panel YC120P(36)
Max.Power(PMax):120wp
Optimum Operating Voltage(Vm):17.6V
Optimum Operating Current(Im):6.82A
Open-Circuit Voltage(Voc):21.6V
OPen-Circuit Current(Isc):7.61A
Power Tolerance:0 - +3%
Module Dimension:1320*664*30mm
Weight:10.5kgs
Max.system Voltage:1000V DC
Max.Series Fuse Rating:10A
NOTC:47 Degree


solar water pump inverter and controller YCSBS2PH15
Rated power:1.5kw
Max.input Voltage:450V
MPPT Voltage Range(V):250-400V
Working Voltage:310V
Max.input Current:6A
Max.MPPT Efficiency:97%
Rated Output Voltage:220v single phase
output frequency:0-50/60HZ
Operating temperature range:-10--+40 degree
Display:LCD
Altitude: 1000m,above 1000m need derate power 1000m
Meet the standards : EN 50178; IEC/EN 62109-1; IEC 61800

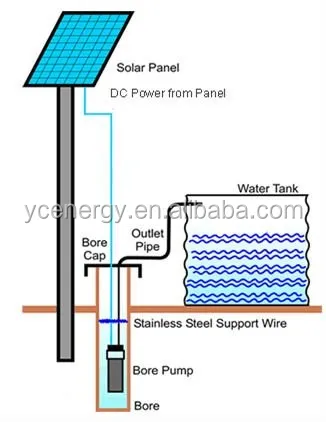

working theory:





1,Solar Panel

The solar array, an aggregation of many solar modules connected in series and in parallel,

absorbs sunlight radiation and converts it into electrical energy, providing dynamical power for

 the whole system.
2,Solar Pumping Inverter

The pumping inverter controls and adjusts the system operation and converts the DC produced

by the solar cell array into AC to drive the pump, and adjusts the output frequency in real-time according

 to the variation of sunlight intensity to realize the maximum power point tracking (MPPT).

Advantages are as follows:

 1). Patented dynamic VI MPPT algorithm ensuring swift response and stable operation
 2). Digital control, automatic operation, data collection and storage for up to 8 years, etc;

      98% conversion efficiency, complete protection
 3). The system is free of any energy storage devices. Instead, the system stores water.

      As a result, reliability is improved dramatically comparing to systems requiring energy storage (battery)

      and at the same time greatly reducing construction and maintenance costs.
3,Pump
 Pump powered by solar cell arrays draws water from the deep wells or rivers and lakes and pours into the

 storage tank or reservoir, or directly connects the irrigation system, fountain system, etc. According to the

 actual system demand and installation condition, different types of pumps such as centrifugal pump, axial

 flow pump, mixed flow pump or deep well pump can be used.



Successful case:





solar water pump hot sale_.png




Company information:




      Yunnan Yaochuang Energy Development Co., Ltd. locates in Kunming, Yunnan, China. It is a subsidiary of Shanghai XIHE Solar Co., Ltd, a trade & Industry integratedproduction-oriented enterprise.
YC Solar specializes in solar system research & developing, producing & marketing. We produce solar panels ranging from 5w to 310w mono & poly crystalline solar modules,
and keep growing production ability from 200MW/Y at present. Customized solar panels can be produced according to clients' requirement. TUV & IEC & EC & ISO certificated,high quality promise.

YC solar provide 25 years solar panels quality guarantee. Solar generator system, solar water pump system, solar street lamp system, solar & wind hybrid system
we supplied are welcomed throughout America, Australia, Europe, Africa, Asia.
Shanghai is one of largest port in China, it ensures our products can be sent out to over world timely & safe.
Yunnan is near by 9 states in Southeast Asia, unique geographical advantages make international trade more convenient.
