220V/380V 0.75KW 1hp Three phases solar home systems for inrigation/home use

FOB Reference Price:Get Latest Price
  • 1 - 4 Watts
    US $1.10
  • 5 - 9 Watts
    US $1.00
  • >=10 Watts
    US $0.90
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Yunnan, China (Mainland)
Brand Name:
YC
Model Number:
Solar System SP 5kw 10KW
Specification:
Normal
Application:
Home
Output Voltage (V):
110/120/220/230V
Load Power (W):
0-30KW
Solar Power (W):
35KW
Work Time (h):
24hours
Certificate:
CE TUV ROHS
Solar panel:
Poly/MONOcrystalline Silicon
Product name:
0.75kw Solar Power Systems
Warranty:
10years
Type:
Off-grid System AC
Inverter:
1000W Pure
Solar panel system:
solar powered home system
Controller:
Intelligent PWM Controller
Protection:
Overloads
Supply Ability
Supply Ability:
1000 Set/Sets per Month
Packaging & Delivery
Packaging Details
Standard package
Solar panel, solar pump inverter, solar water pump in carton/wooden box
Port
ShangHai
Lead Time :
Quantity(Watts) 1 - 1 2 - 100 >100
Est. Time(day) 5 15 To be negotiated
Product Introduction

220V/380V 0.75KW 1hp Three phases solar home systems for inrigation/home use

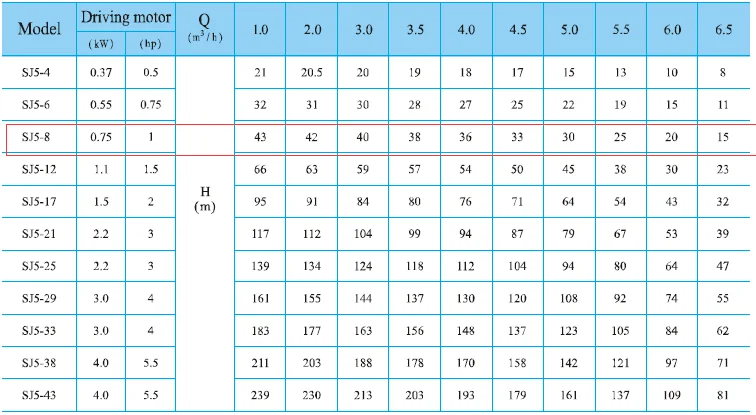

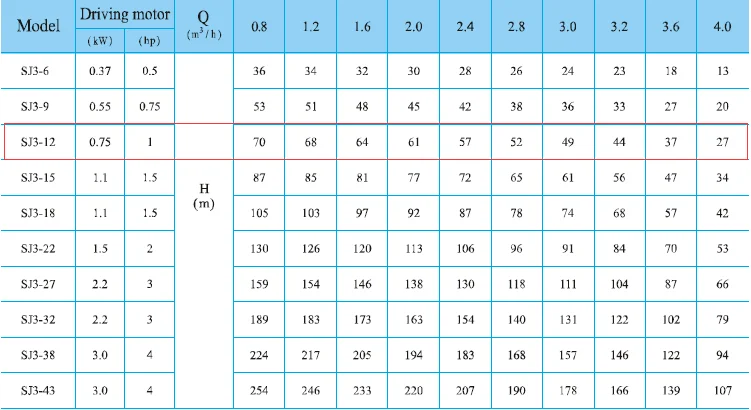

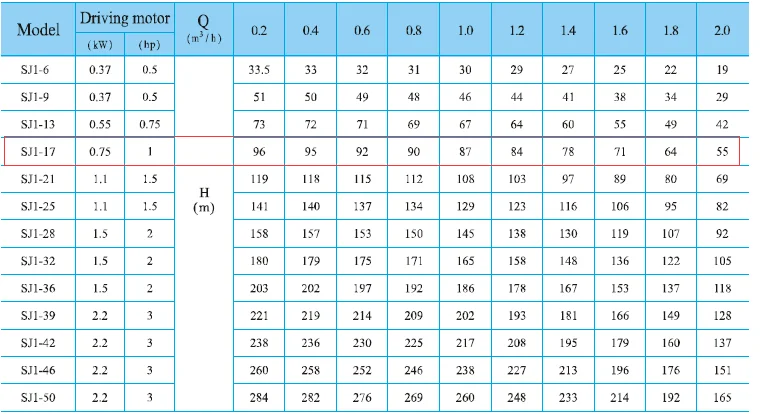

Product parameters

The solar water pump system is composed of solar pump inverter, 3 phase AC submersible solar water pump, and solar array. The solar array is composed of many solar cells panels in series and in parallel, and absorbs irradiation from Sunlight, and converts into electrical energy (DC). Inverter controls and regulates pumping operation system and converts DC voltage from PV modules to AC to drive the AC pump, with the function of MPPT and it regulates the output frequency according to irradiation in actual time to achieve the maximum power. The AC pump driven by a 3 phase induction motor, draws water from well or rivers and lakes, then water reserved on tank/ponds for irrigation systems or other applications. Based on the requirements and installation conditions, different types of pumps will be required.

Water pump solution

The solar water pump system is composed of solar pump inverter, 3 phase AC submersible solar water pump, and solar array. The solar array is composed of many solar cells panels in series and in parallel, and absorbs irradiation from Sunlight, and converts into electrical energy (DC). Inverter controls and regulates pumping operation system and converts DC voltage from PV modules to AC to drive the AC pump, with the function of MPPT and it regulates the output frequency according to irradiation in actual time to achieve the maximum power. The AC pump driven by a 3 phase induction motor, draws water from well or rivers and lakes, then water reserved on tank/ponds for irrigation systems or other applications. Based on the requirements and installation conditions, different types of pumps will be required.


1)The system installation Country _________ City __________

2)Daily water supply _______ m3

3) Vertical height from water level to ground H1 (Static Head) __________ m

4) Vertical height from tank (if any) to ground H2 _______ m

5) Horizontal distance from tank (if any) to water source L _________ m

6) Diameter D _______ for the borehole , pond or well


750w 1hp Solar water pump system spec.
Item
Spec.
Unit
QTY
Remarks
Solar water pump

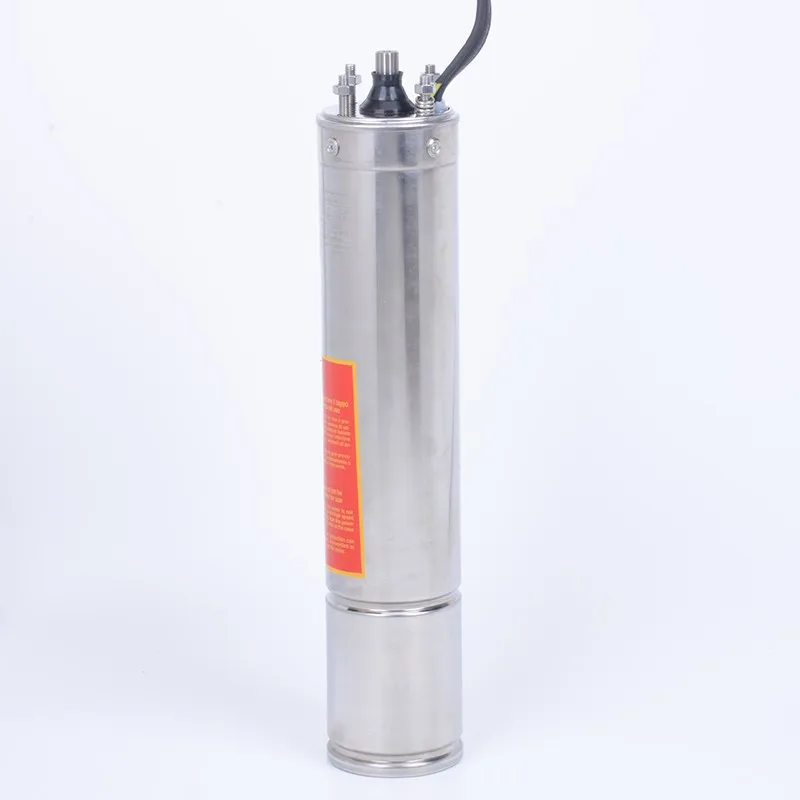

0.75KW submersible deep well water pump, 50HZ, output voltage 220V three phase
SET
1
High quality full stainless steel material
Warranty 2 years
Solar panel YC320P(72)
Pmax: 320Wp poly-crystalline Vm: 36.5V Im: 8.78A Voc: 44.3V Isc: 9.46A NOTC: 47°C Module Dimension: 1956×992×50mm Weight:25KG
PCS
4
TUV, CE certification, grade A quality, 25 years 80% output warranty YAOCHUANG ENERGY brand
Solar pump inverter & controller YCSBH2PH15
Rated capacity: 1.5KW Max. input voltage: 310V DC MPPT voltage: 250-400V DC Max. input current: 8A Input road: 2 Rated output voltage: 220V 3 phase Output frequency: 0~50/60Hz Operating temperature: -10°C~+50°C Display: LCD+LED Altitude: <1000m Insert voltage booster module
SET
1
Specialized pump inverter integrated MPPT controller YAOCHUANG ENERGY brand Warranty 2 years
PV Cable
DC pv cable 4mm2 for connection between solar panel and inverter
M
50
Warranty
5 years
Pump Cable
AC cable 3*2.5 mm2 for connection between pump and inverter
M
50
Warranty
5 years
Acessories
MC4 Compatible Connector
Set
1
Warranty
2 years
Kindly send me inqury for further info and price for water pump system(energy(at)thesolarwaterpump.com)
Why Yaochuang

Quality assurance and technical support.

the lamination process to detect problems within the module, this helps the quality department to optimize all processes and try to decrease as much losses as possible.

Answer technical questions concerning electrical and mechanical characteristics.

Provide project initial estimates, site survey, system sizing and component selection.

Preparing suitable designs of maximum efficiency for each proposal.

Arrange the engineer to install.

High Efficiency .

Yaochuang solar panels are produced using high efficiency solar cells with more than 90% power output and 25 years warranty.

Long-term and stable cooperation with customers.

We have accumulated distributors and retailers from various countries and have been cooperating with them for a long time

Our mission.

We are committed to the ongoing advancement of efficiency and quality of our products by using world class manufacturing facility to insure delivering highest quality, values, and adding the best quality of raw materials

Our solutions.

Solar Pumping Systems

Solar Street Lighting Systems

Off Grid Solar Kits


Single product

Application solar water pump system

>> Water supply for remote villages and homes;
>> Irrigation of farms and gardens;
>> Wildlife watering;
>> Filling of Fish ponds and Swimming pools;
>> Surface water pumping for landscaping streams and waterfalls;
>> Cattle, livestock watering systems (animal husbandry);
>> Water supply for sea islands;
>> Water treatment projec
>> Alternate system for water supply to counter grid power outrages.

Certifications
Project show

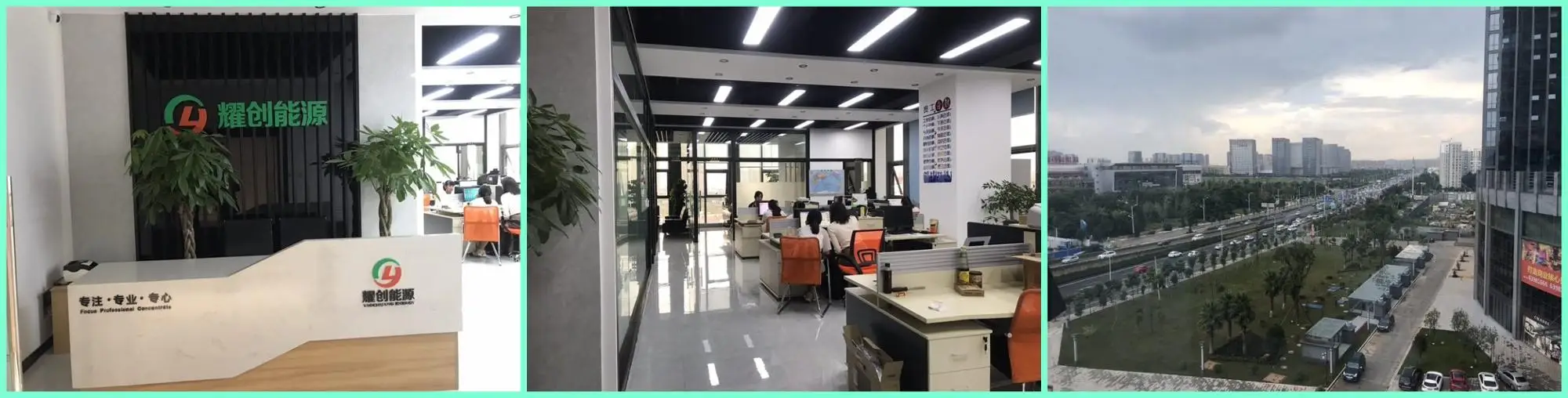

Our Company

YUNNAN YAOCHUANG ENERGY DEVELOPMENT CO.,LTD is engaged in producing solar modules and PV applications with perfect quality, and have built excellent cooperative relationship with world-class famous PV manufacturers and installers. Our products not only get domestic clients' high praise, but also export to Africa, South America, Southeast Asia, and The Middle East.

Presently, our main products are solar panels and PV applications, including solar modules, off-grid system, and correlative equipments, and serve for energy power, lighting, communication, traffic, agriculture, weather forecast and so on. We believe in innovation, cooperation, teamwork, speed spirit, and continue to exploit, and work hard. So that the cost of products can be reduced, and we can provide clean and substantial new energy to our clients, and get brighter future!
