40A 48V LCD display off grid home solar system PWM solar charge controller

FOB Reference Price:Get Latest Price
US $10-18 / Pieces | 10 Piece/Pieces (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
China (Mainland)
Brand Name:
off grid solar controller
Model Number:
YC-S
Application:
Charger Controller, Solar Thermal
Rated Voltage:
48V
Maximum Current:
40A
Product:
off grid solar controller
Usage:
solar system controller
Test:
Integrated self test
Indicator:
LED
Weight:
580G
Certification:
CE & ISO & RoHS
Pipe Material:
PVC
Type:
Non-Pressure
Supply Ability
Supply Ability:
100000 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
standard carton box package
Port
shanghai, shenzhen, ningbo
Lead Time :
3-5 days

Specifications

off grid solar controller
48V Automatic identification
solar lightig & charge controller
90*188*48mm IP56 protection

40A 48V LCD display off grid home solar system PWM solar charge controller

Product Description

This product is the new generation of intelligent solar recharge controller. The industrial product design reliability, with super stability and high life-span.

  •  The department example product automatic identification system voltage 24V and 12V
  •  The controller is used to protect battery, avoid solar battery overcharge wants and load output
  •  Adopted MCU control, five charging and discharging LED indicator, capacity state
  •  With strong charger, balanced filling and floating filling 3-sectional series PWM temperature compensation function
  •  Automatic detection and tracking outside and battery temperature, the built-in temperature compensation function
  •  Have overall electronic protection, it has the overcharge put, overload, short-circuit, answer the reverse, etc
  •  Has the TVS lightning protection, no jump line design, can enhance the system reliability and durability
  •  Parameter setting with power lost save functions, namely system model and control parameters and other important data are stored in chip inside, fell after power not to lose, and makes the system more reliable
  •  All control all adopt industrial-class chips and precision components, can in cold, high temperature, humid environment normal operation

solar controller 1.jpg

Technology Data

Rated current

40A

Rated voltage

48V

PV module voltage

≤100V

Float charge voltage

55.2V

Low voltage protection

42.8V

Low voltage recovery

50V

Non load loss

≤30mA

short circuit loss

≤170mV

Charge mode

PWM

Temperature compensation

-4mV/Cell/℃

Installation wire

≤7# AWG(16mm2)

Working temperature

-10℃~60℃

Storage temperature

-30℃~70℃

Weight

580g

Dimension

90×188×48mm

Mounting hole spacing

60×178mm --Φ5

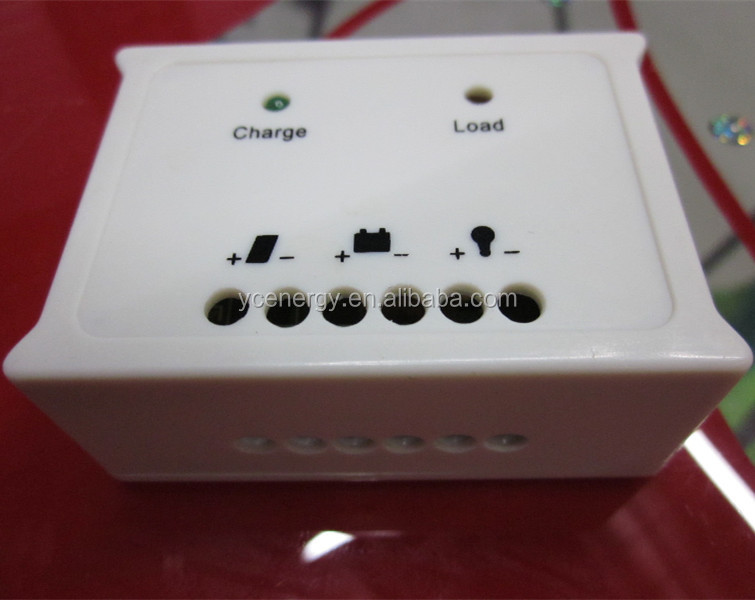

controller 2

solar controller 1.jpg











solar street light.jpg

solar street light 37

What we supply?

Customize solar water pump system

Customize solar street light system

Customize home solar system

Customize grid tie solar system

application

Any question about off grid solar controller or other products, please feel free to contact Sunny

introduce
